Product Model

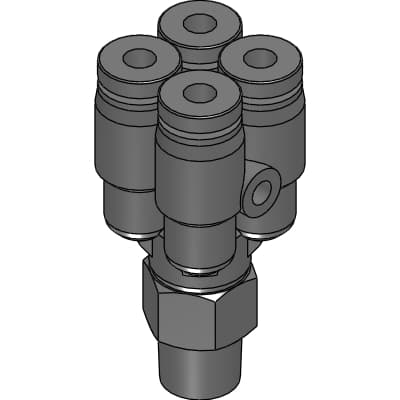

ZSP-RX4-8
Selling Points
- 1Made from stainless steel (SUS303 or equivalent), perfect for use in corrosive atmospheres.
- 2A wide range of variations for various pneumatic piping applications.
- 3RoHS Directive compatible, eliminating harmful substances from the materials.
- 4Durable design with a stainless steel metal body for long-lasting performance.
- 5Push-in fittings simplify installation and reduce assembly time.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Ident number | — | Model no. | ZSP-RX4-8 |
Applicable tube outer diameter φ | 4mm | Thread | R1/4 |
A | 11.0mm | L | 48.7mm |
G | 42.7mm | C1 | 9.9mm |
C2 | 10.5mm | B | 14.9mm |
P1 | 10mm | P2 | 10mm |
E | 3.2mm | N | 14.2mm |
H | 14mm | F | 20.5mm |
Effective cross section area | 1.4mm^2 | Weight | 27.0g |
Specifications may be subject to change without notice
