Product Model

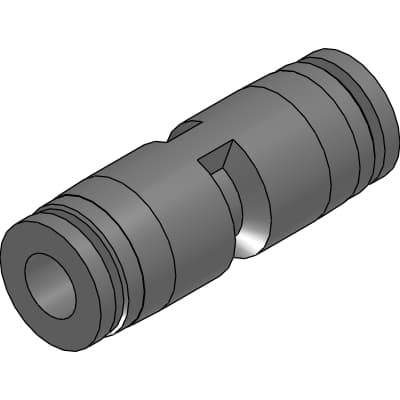

ZSP-U6
Selling Points
- 1The ZSP-U6 series offers a wide range of fittings to suit various pneumatic piping needs.
- 2Made from RoHS Directive compatible materials, these fittings eliminate substances harmful to the environment.
- 3Constructed from stainless steel (SUS303 or equivalent), ensuring durability and resistance to corrosive atmospheres.
- 4Designed for use in pneumatic systems, including applications susceptible to copper ions.
- 5Available in various sizes with precise dimensions, ensuring efficient fluid control and minimal space usage.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | ZSP-U6 | Applicable tube outer diameter φ | 6mm |
L | 34.9mm | C1 | 11.8mm |
C2 | 12.5mm | B | 17.0mm |
Effective cross section area | 12.5mm | Weight | 6.2g |
Specifications may be subject to change without notice
