CKD CorporationFittings/tubes
Product Model

ZSP-W8-6

Manufacturer

CKD Corporation

Category

Fittings/tubes

Product ID

52236

In Stock
Last updated: 2025/4/26
View Specifications

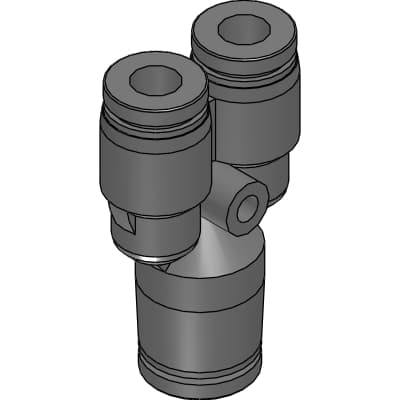

CKD Corporation ZSP-W8-6

Selling Points

  • 1Stainless Steel Body: Made from SUS303 or equivalent stainless steel for durability and resistance to corrosive atmospheres.
  • 2Wide Variations: Offers a diverse range of model variations to fit various pneumatic piping needs.
  • 3Environment-Friendly: Compliant with the RoHS Directive, ensuring all harmful substances are eliminated from the materials.
  • 4High-Quality Construction: Utilizes hydrogenated nitrile rubber and stainless steel components for reliable performance.
  • 5Versatile Applications: Suitable for use in assembly, air pressure supply, filtration, and other industrial processes.
Product Details
ZSP-W8-6
CKD Corporation

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Model no.
ZSP-W8-6
Applicable tube outer diameter φ
8mm
Applicable tube outer diameter φ
6mm
L
42.5mm
C1
13.8mm
C2
11.8mm
C3
14.5mm
C4
12.5mm
B1
18.1mm
B2
17.0mm
P
14mm
E
3.4mm
N
17.3mm
F
15.1mm
Effective cross section area
8.0mm^2
Weight
13.0g

Specifications may be subject to change without notice
