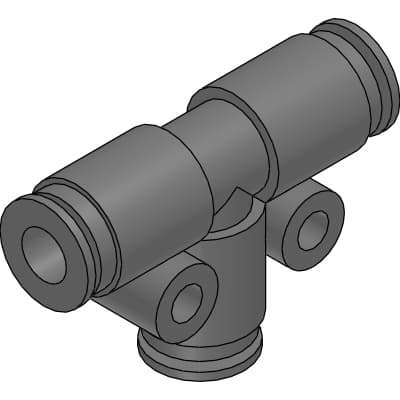

Product Model
ZW-T10-0
Selling Points
- 1Compact design saves space in tight installations.
- 2Smooth insertion and secure sealing ensure reliable connections.
- 3Flame-resistant resin used in the white body and push ring (UL94 Standards V-0 equivalent).
- 4All metal parts are made from high-quality stainless steel.
- 5Compatible with tubes of Φ4, Φ6, Φ8, Φ10, and Φ12 diameters.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | ZW-T10-0 | Applicable tube outer diameter φ | 10mm |
L | 27.0mm | B | 21.5mm |
C | 17.5mm | E | 4.2mm |
F | 18.5mm | N | 11.0mm |
Min. bore size | 30.0mm | Effective cross section area | 30.0mm^2 |
Weight | 23.0g |
Specifications may be subject to change without notice
