Product Model
ad-1/4npt-g1/4-i
Selling Points

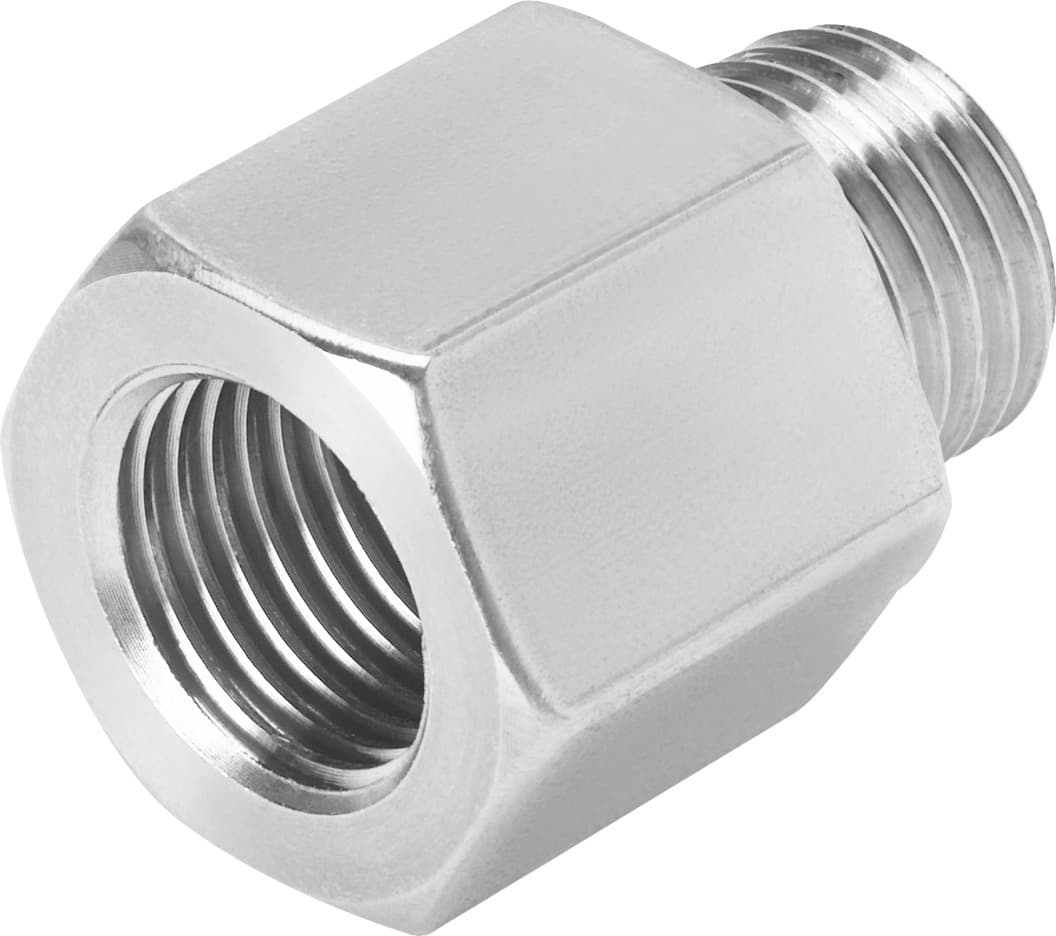

- 1The Festo AD-1/4NPT-G1/4-I adapter is designed to provide a secure and reliable connection between 1/4 NPT and G1/4 pneumatic systems, ensuring optimal performance in various industrial applications.
- 2This adapter features a nominal size of 7.95 mm and operates within a temperature range of -10 °C to 60 °C, making it suitable for diverse environmental conditions.
- 3With a low corrosion resistance class (CRC) of 1, the adapter is designed to withstand moderate corrosion stress, ensuring durability in harsh industrial settings.
- 4The adapter is RoHS-compliant and features PVC seals and a galvanized steel housing, ensuring compliance with environmental regulations and providing long-lasting performance.
- 5The AD-1/4NPT-G1/4-I adapter is available with a max tightening torque of 12 Nm for pneumatic connection 1 and 11 Nm for pneumatic connection 2, ensuring secure connections without over-tightening.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width | 7.95mm | Operating pressure for entire temperature range | -0.95bar 10bar |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 60°C | Max. tightening torque, pneumatic connection 1 | 12Nm |
Max. tightening torque, pneumatic connection 2 | 11Nm | Product weight | 21g |
Pneumatic connection 1 | external thread 1/4 NPT | Pneumatic connection 2 | Internal thread G1/4 |
Note on materials | RoHS-compliant | Seals material | PVC |
Housing material | Steel, galvanized | Manufacturer ID | 9625 |
Specifications may be subject to change without notice
