Product Model

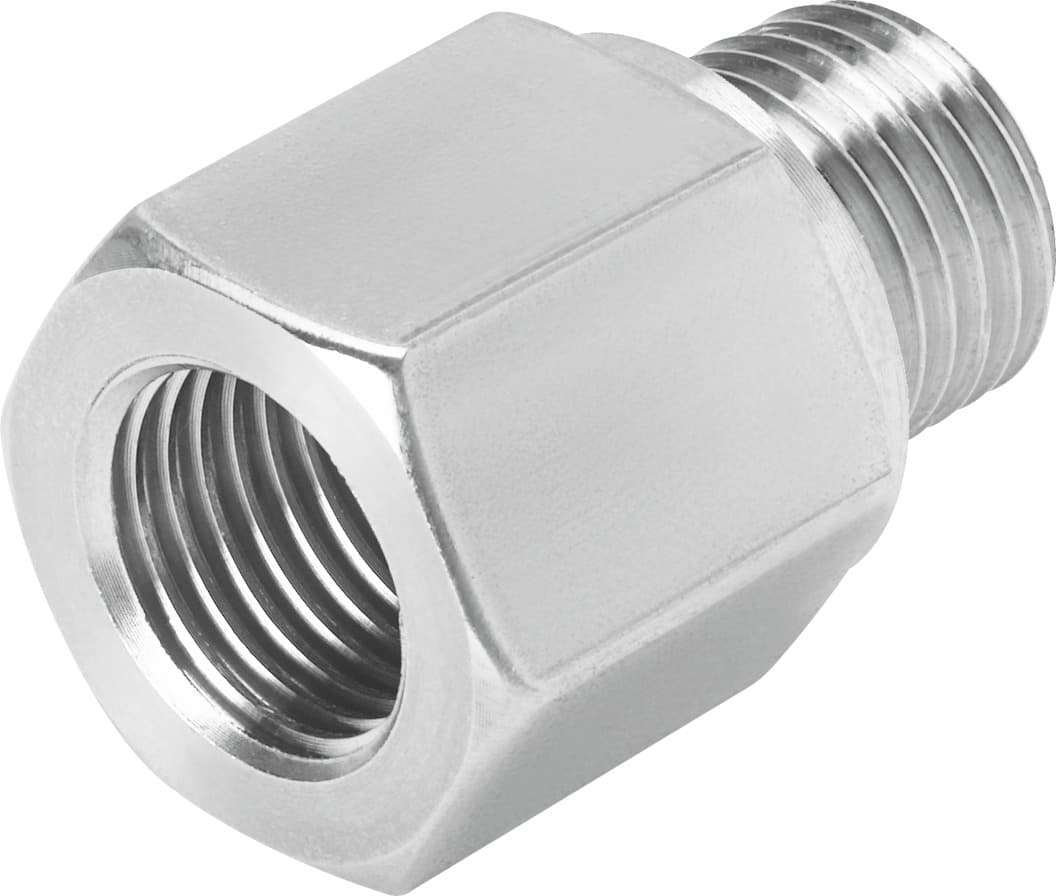

ad-g1/2-1/2npt-i
Selling Points
- 1Seamless Pipe Connections - The Festo AD-G 1/2-1/2 NP T I fittings provide a secure and leak-free connection between pipes, ensuring optimal performance in industrial automation systems.
- 2High-Quality Materials - Crafted from durable materials, these fittings withstand harsh industrial environments and maintain their integrity over time.
- 3Easy Installation - Featuring a straightforward design, the AD-G 1/2-1/2 NP T I fittings are simple to install, reducing downtime and increasing productivity.
- 4Versatile Applications - Suitable for a wide range of pneumatic systems, these fittings are ideal for various industrial applications, including manufacturing and logistics.
- 5Reliable Thread Sealing Ring - Equipped with a 24mm external HEX thread sealing ring, the AD-G 1/2-1/2 NP T I fittings ensure a tight seal, preventing leaks and ensuring system reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width | 14.3mm | Operating pressure for entire temperature range | -0.95bar 10bar |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 60°C | Max. tightening torque, pneumatic connection 1 | 40Nm |
Max. tightening torque, pneumatic connection 2 | 28Nm | Nominal tightening torque | 47.9Nm |
Tolerance for nominal tightening torque | ± 20% | Product weight | 51.89g |
Pneumatic connection 1 | External thread G1/2 | Pneumatic connection 2 | Female thread 1/2 NPT |
Note on materials | RoHS-compliant | Seals material | PVC |
Housing material | Steel, galvanized | Manufacturer ID | 9398 |
Specifications may be subject to change without notice
