Product Model

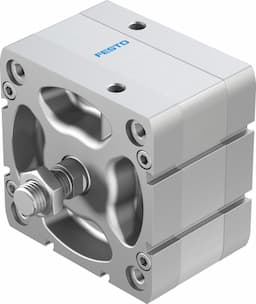

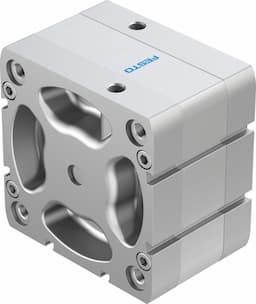

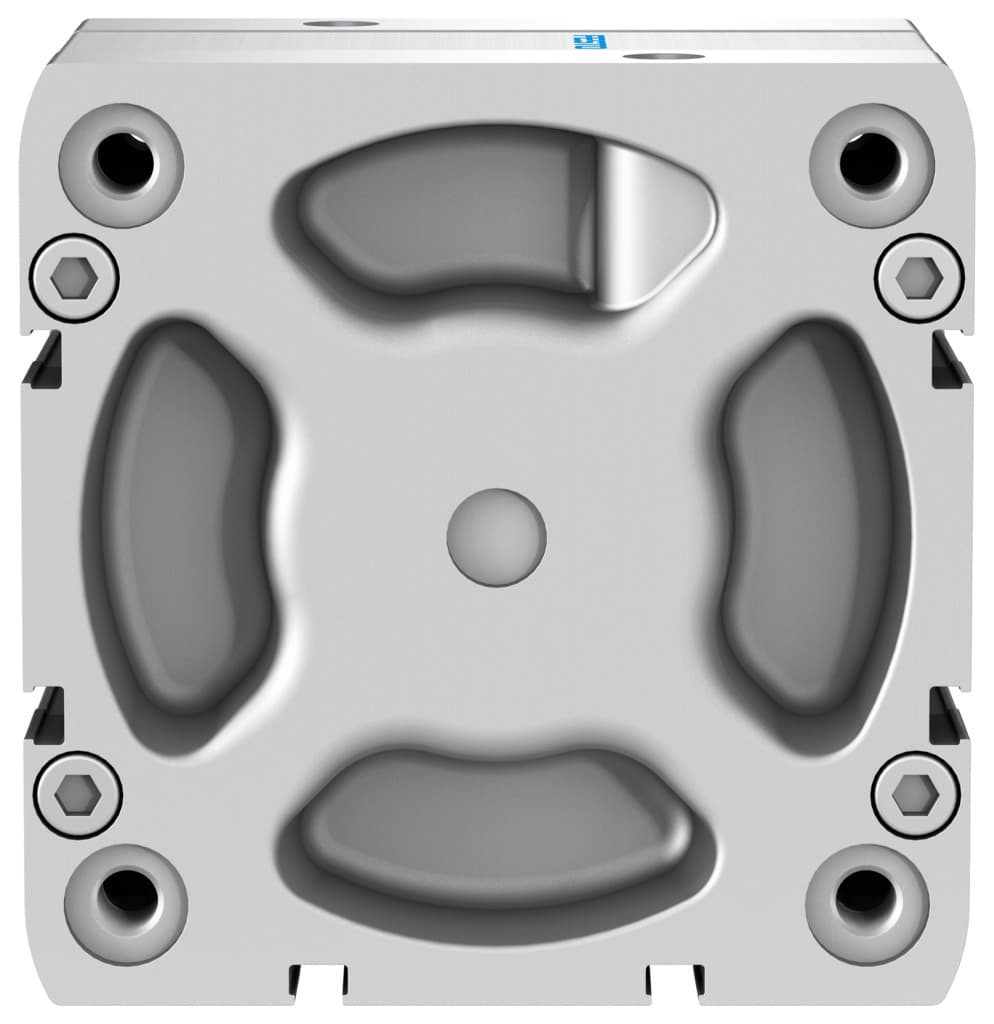

adn-100-10-a-p-a
Selling Points
- 1The ADN-100-10-A-P-A features a compact design, ideal for applications where space is limited, offering up to 50% less installation space compared to standard ISO cylinders.
- 2Equipped with elastic cushioning rings/pads at both ends, this cylinder ensures smooth and uniform movement, reducing wear and tear on the system.
- 3The ADN-100-10-A-P-A includes a magnetic piston for precise position sensing, enhancing accuracy and reliability in various applications.
- 4Operating within a pressure range of +0.6 to +10 bar, this cylinder is suitable for demanding applications requiring high force and precision.
- 5Available with internal or external threads on the piston rod, this cylinder offers a wide range of variants to suit customized application needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10mm | Piston diameter | 100 mm |
Piston rod thread | M16x1.5 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Conforms to standard | ISO 21287 |
Piston rod end | External thread | Position sensing | For proximity sensor |
Symbol | 00991217 | Variants | Piston rod at one end |
Operating pressure | 0.6bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 2.5J |
Theoretical force at 6 bar, retracting | 4524N | Theoretical force at 6 bar, advancing | 4712N |
Moving mass | 620g | Product weight | 1840g |
Type of mounting | Optionally: With through-hole With internal thread With accessories | Pneumatic connection | G1/8 |
Note on materials | RoHS-compliant | Flange screws material | Steel |
Cover material | Die-cast aluminum, coated | Seals material | TPE-U(PUR) |
Piston rod material | High-alloy steel | Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
Manufacturer ID | 536374 |
Specifications may be subject to change without notice
