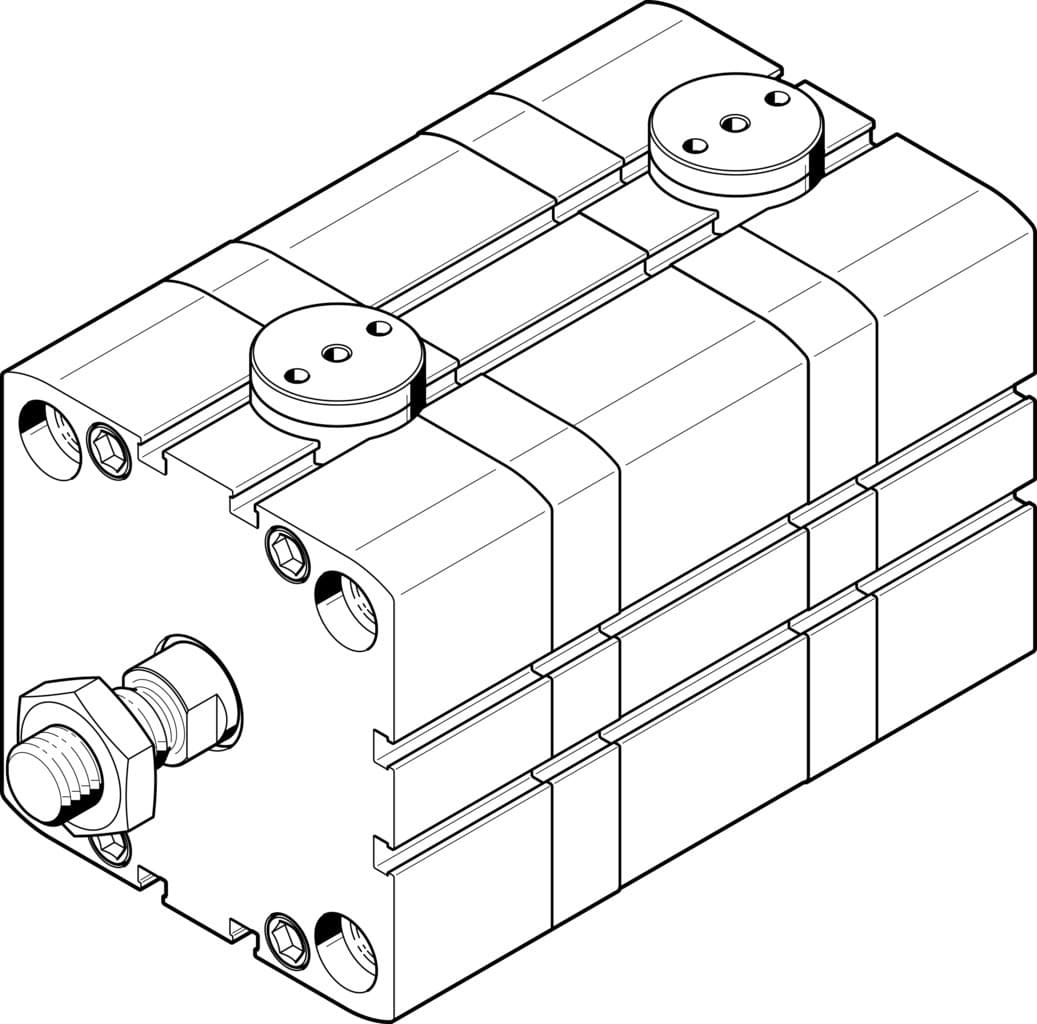

Product Model
adn-100- -el-
Selling Points
- 1The Festo ADN-100- -E features a robust design and precise engineering, ensuring optimal functionality and reliability in industrial automation applications.
- 2These cylinders conform to the ISO 21287 standard, guaranteeing high-quality performance and compatibility with various industrial systems.
- 3Equipped with elastic cushioning rings/plates at both ends, the ADN-100- -E provides improved running performance and reduces system wear.
- 4The cylinder is designed for position sensing via proximity sensors, enhancing precision and accuracy in automation processes.
- 5Made from high-alloy steel and smooth-anodized wrought aluminum alloy, the ADN-100- -E offers high corrosion protection, ensuring durability in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10mm 500mm | Piston diameter | 100 mm |
Piston rod thread | M16x1.5 | Based on norm | ISO 21287 |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Piston rod end | Internal thread | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Variants | With end-position locking at both ends With rear end-position locking With front end-position locking Extended external thread piston rod Special thread on piston rod Extended piston rod Laser etched rating plate |
Operating pressure | 1.5bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 2.5J |
Theoretical force at 6 bar, retracting | 4524N | Theoretical force at 6 bar, advancing | 4712N |
Additional moving mass per 10?mm stroke | 25g | Type of mounting | With internal thread With accessories |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy Anodized | Piston rod material | High-alloy steel |
Material of cylinder barrel | Wrought aluminum alloy Smooth anodized | Manufacturer ID | 548221 |
Specifications may be subject to change without notice
