Product Model
adn-12-20-i-p-a
Selling Points

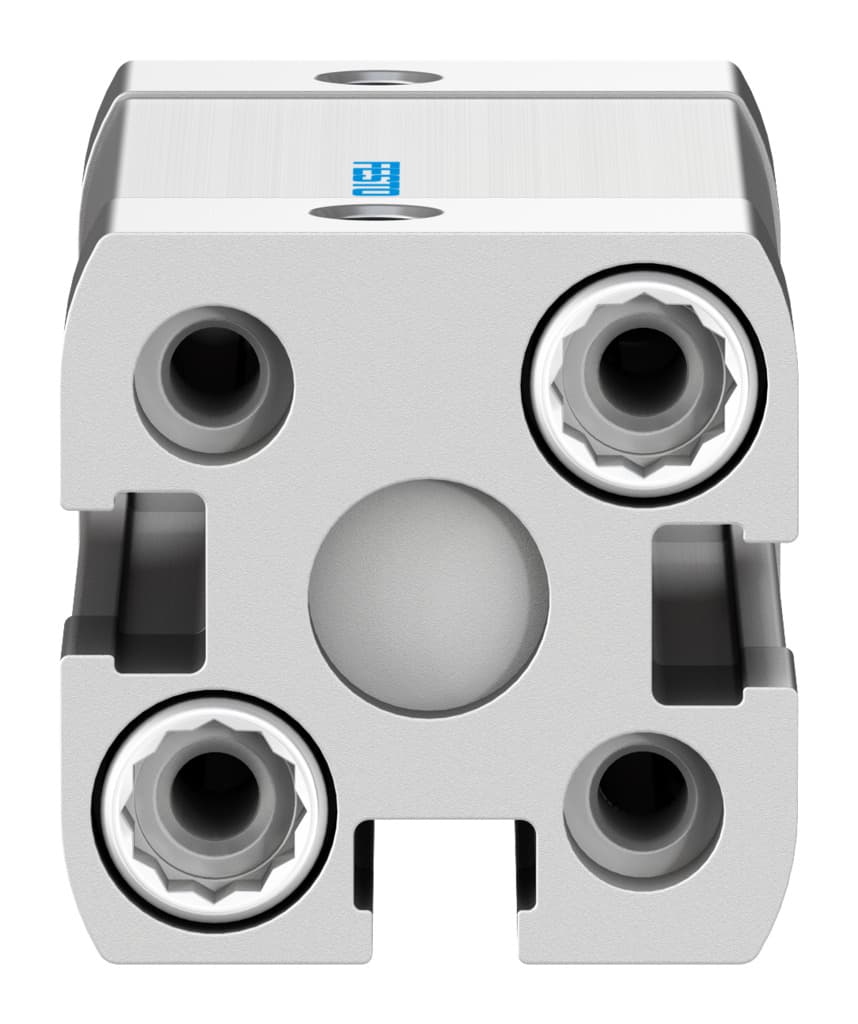

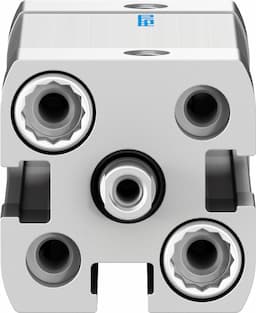

- 1The ADN-S-12-20-I-P-A compact cylinder is engineered for precise control in various automation tasks, ensuring reliable performance in demanding environments.
- 2This cylinder operates in both directions, providing flexibility and efficiency in applications requiring simultaneous forward and backward movements.
- 3Equipped with elastic cushioning rings/plates at both ends, the ADN-S-12-20-I-P-A reduces wear and tear, extending the lifespan of the cylinder.
- 4Available for mounting via through-hole, female thread, or accessories, this cylinder offers flexibility in installation and integration.
- 5Built with anodised wrought aluminium alloy and high-alloy stainless steel components, the ADN-S-12-20-I-P-A ensures durability in various corrosive environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 20mm | Piston diameter | 12 mm |
Piston rod thread | M3 | Based on norm | ISO 21287 |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Double-acting | Piston rod end | Internal thread |
Position sensing | For proximity sensor | Symbol | 00991217 |
Variants | Piston rod at one end | Operating pressure | 14.5psi 145psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 0.07J | Theoretical force at 6 bar, retracting | 51N |
Theoretical force at 6 bar, advancing | 68N | Moving mass | 15g |
Product weight | 87g | Type of mounting | Optionally: With through-hole With internal thread With accessories |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Flange screws material | Steel | Cover material | Wrought aluminum alloy, anodized |
Seals material | TPE-U(PUR) | Piston rod material | High-alloy steel |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Manufacturer ID | 536214 |
Specifications may be subject to change without notice
