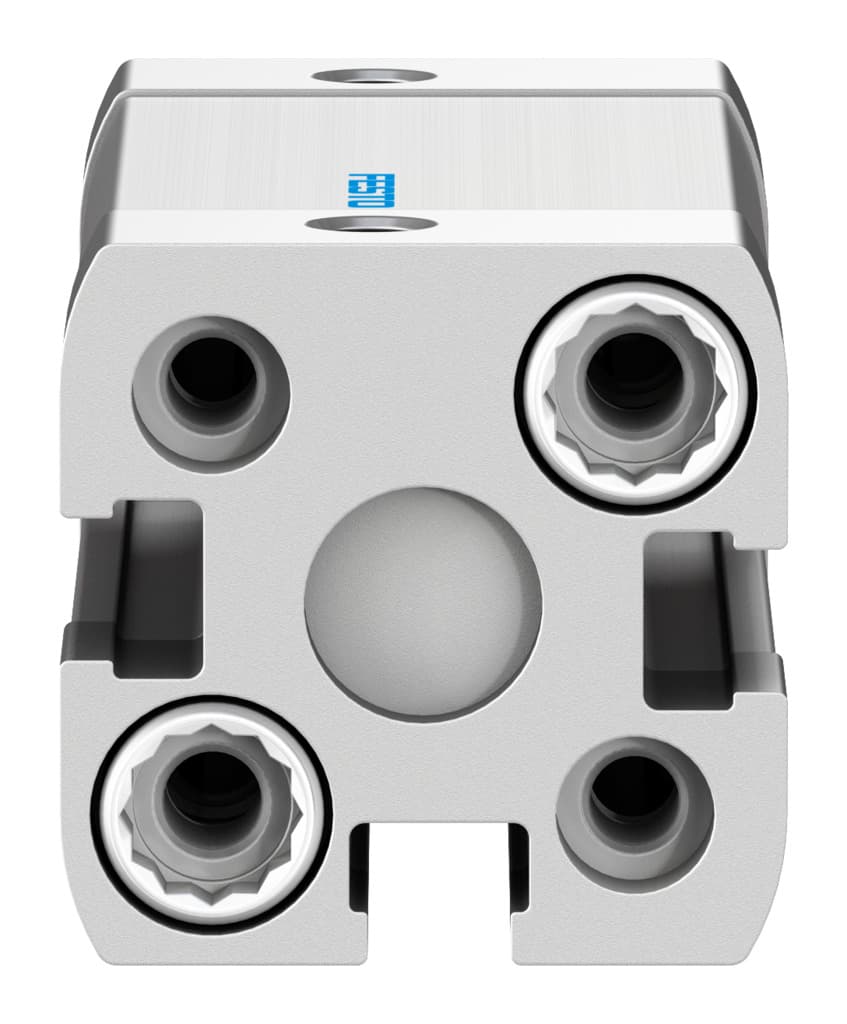

Festo ADN-12-25-A-P-A Compact Cylinder - Double Acting, 12mm Piston Diameter

Selling Points

1The ADN-12-25-A-P-A is up to 50% smaller than standard pneumatic cylinders, making it perfect for confined spaces.
2This cylinder operates with dual connection ports for compressed air, allowing for both advancing and retracting the piston rod.
3Equipped with elastic cushioning rings/plates at both ends, ensuring smooth operation and minimal friction.
4Designed for contactless position sensing using proximity sensors, enhancing precision and reliability.
5Can be mounted via through-hole, female thread, or accessories, providing flexibility in installation.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	25mm	Piston diameter	12 mm
Piston rod thread	M5	Based on norm	ISO 21287
Cushioning	Elastic cushioning rings/pads at both ends	Mounting position	Any
Mode of operation	Double-acting	Piston rod end	External thread
Position sensing	For proximity sensor	Symbol	00991217
Variants	Piston rod at one end	Operating pressure	14.5psi 145psi
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Cleanroom class	Class 6 according to ISO 14644-1	Ambient temperature	-20°C 80°C
Impact energy in the end positions	0.07J	Theoretical force at 6 bar, retracting	51N
Theoretical force at 6 bar, advancing	68N	Moving mass	18g
Product weight	95g	Type of mounting	Optionally: With through-hole With internal thread With accessories
Pneumatic connection	M5	Note on materials	RoHS-compliant
Flange screws material	Steel	Cover material	Wrought aluminum alloy, anodized
Seals material	TPE-U(PUR)	Piston rod material	High-alloy steel
Material of cylinder barrel	Wrought aluminum alloy, smooth-anodized	Manufacturer ID	536208
