Product Model
adn-16-10-a-p-a
Selling Points

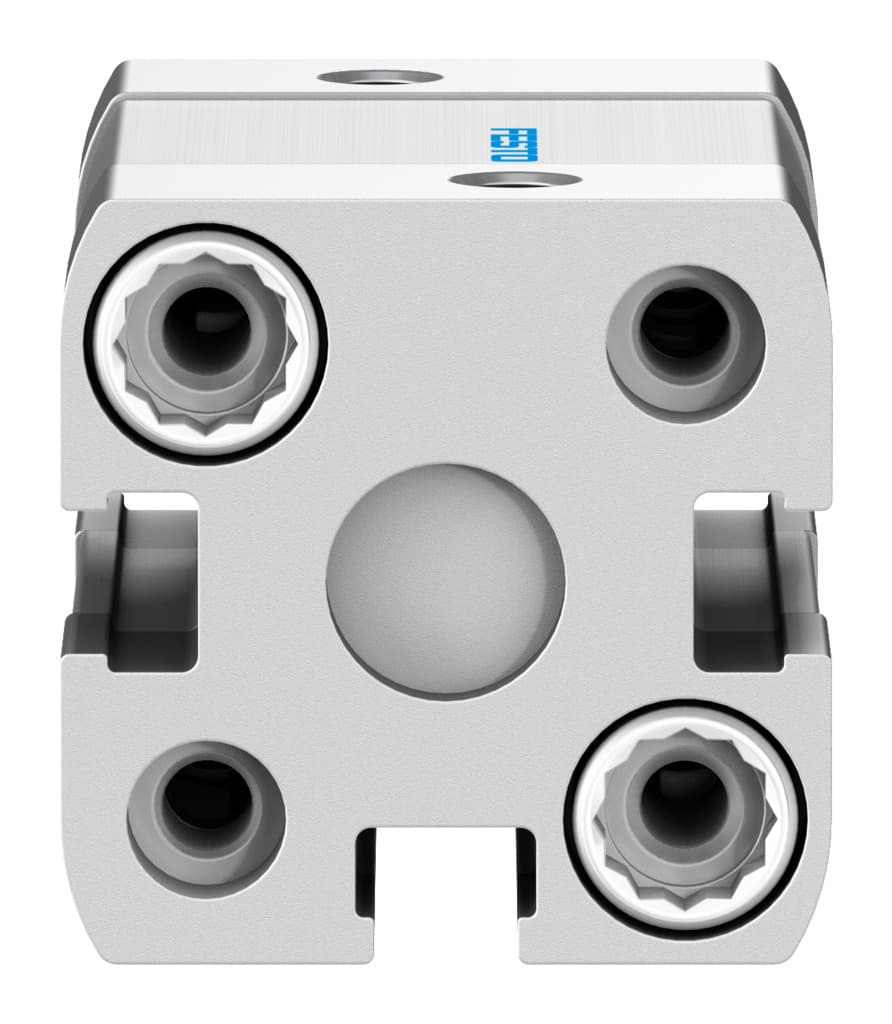

- 1The Festo ADN-16-10-A-P-A compact cylinder features a stroke length of 10 mm and a piston diameter of 16 mm, making it ideal for applications requiring precise control and minimal space.
- 2Equipped with elastic cushioning rings/pads at both ends, this cylinder ensures smooth operation and reduces wear and tear, extending its lifespan.
- 3The ADN-16-10-A-P-A cylinder is based on the ISO 21287 standard, ensuring compatibility with a wide range of pneumatic systems and components.
- 4With a piston rod thread of M6, this compact cylinder offers versatile mounting options, allowing for easy integration into various mechanical systems.
- 5Designed for double-acting applications, the ADN-16-10-A-P-A cylinder provides reliable and efficient operation in both extension and retraction modes.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10mm | Piston diameter | 16 mm |
Piston rod thread | M6 | Based on norm | ISO 21287 |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Double-acting | Piston rod end | External thread |
Position sensing | For proximity sensor | Symbol | 00991217 |
Variants | Piston rod at one end | Operating pressure | 14.5psi 145psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 0.15J | Theoretical force at 6 bar, retracting | 90N |
Theoretical force at 6 bar, advancing | 121N | Moving mass | 22g |
Product weight | 89g | Type of mounting | Optionally: With through-hole With internal thread With accessories |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Flange screws material | Steel | Cover material | Wrought aluminum alloy, anodized |
Seals material | TPE-U(PUR) | Piston rod material | High-alloy steel |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Manufacturer ID | 536220 |
Specifications may be subject to change without notice
