Product Model
adn-16-35-a-p-a
Selling Points

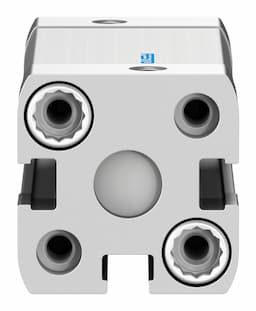

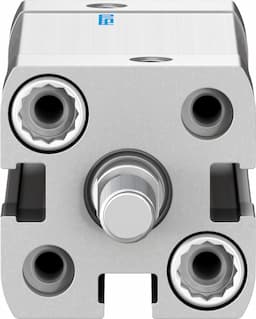

- 1The Festo ADN-S-16-35-A-P-A compact cylinder offers high precision and reliability, making it suitable for a wide range of applications, including manufacturing and cleanroom environments.
- 2This cylinder operates double-acting, allowing for both forward and backward motion, which enhances its versatility in various industrial settings.
- 3Equipped with elastic cushioning rings/plates at both ends, the ADN-S-16-35-A-P-A ensures smooth operation and reduces wear and tear on the cylinder.
- 4The cylinder features a low corrosion stress (CRC 1) and is made from materials that meet RoHS compliance, ensuring durability in various environments.
- 5Available with through-hole, female thread, and accessories, the ADN-S-16-35-A-P-A offers flexible mounting options to suit different application requirements.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 35mm | Piston diameter | 16 mm |
Piston rod thread | M6 | Based on norm | ISO 21287 |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Double-acting | Piston rod end | External thread |
Position sensing | For proximity sensor | Symbol | 00991217 |
Variants | Piston rod at one end | Operating pressure | 14.5psi 145psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 0.15J | Theoretical force at 6 bar, retracting | 90N |
Theoretical force at 6 bar, advancing | 121N | Moving mass | 32g |
Product weight | 124g | Type of mounting | Optionally: With through-hole With internal thread With accessories |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Flange screws material | Steel | Cover material | Wrought aluminum alloy, anodized |
Seals material | TPE-U(PUR) | Piston rod material | High-alloy steel |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Manufacturer ID | 8178762 |
Specifications may be subject to change without notice
