Product Model

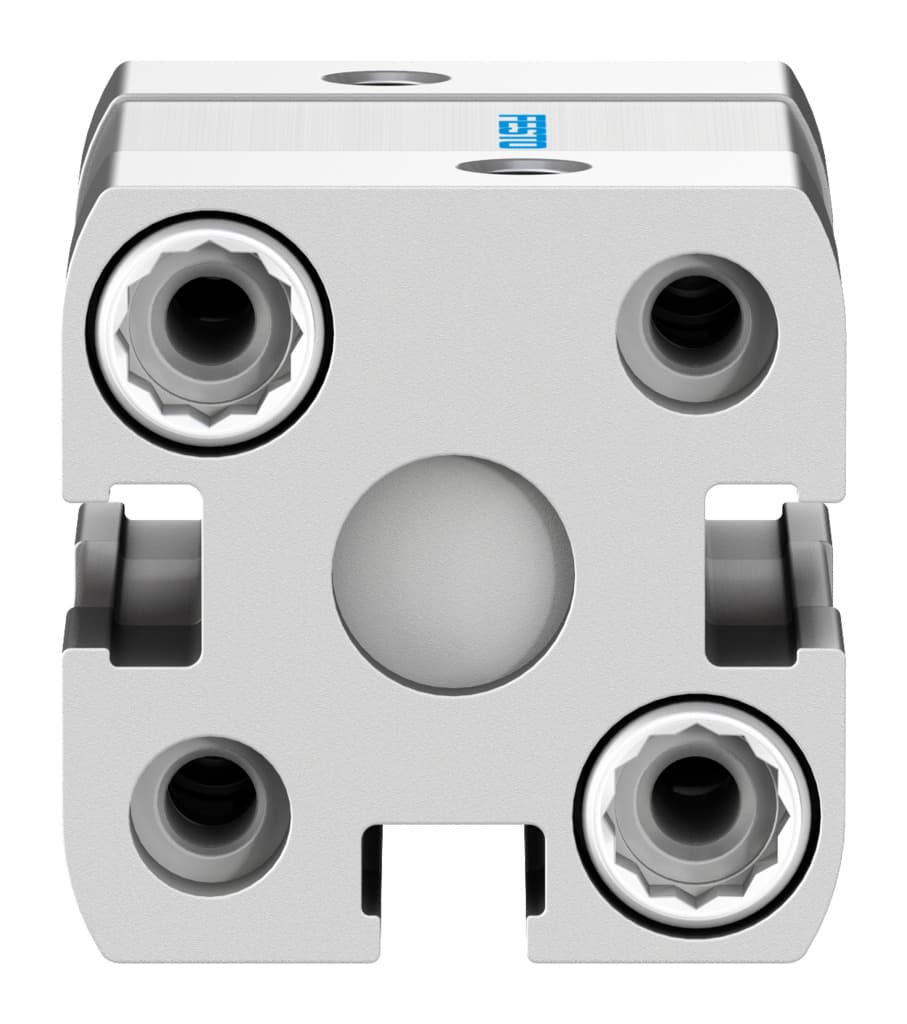

adn-16-5-a-p-a
Selling Points
- 1The Festo ADN-16-5-A-P-A compact cylinder features a 16mm piston diameter and a 5mm stroke, making it perfect for applications requiring precise control and high force output.
- 2This double-acting cylinder is designed for versatile use in various automation tasks, including battery production and other industrial applications.
- 3The cylinder boasts robust corrosion resistance with a class KBK 2 rating, ensuring durability in moderate corrosion environments.
- 4Equipped with elastic cushioning rings/plates at both ends, the ADN-16-5-A-P-A provides smooth operation and reduces shock loads.
- 5The cylinder is RoHS compliant and made from high-quality materials, including high-alloyed steel for the piston rod and anodized aluminum for the cylinder tube, ensuring long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 5mm | Piston diameter | 16 mm |
Piston rod thread | M6 | Based on norm | ISO 21287 |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Double-acting | Piston rod end | External thread |
Position sensing | For proximity sensor | Symbol | 00991217 |
Variants | Piston rod at one end | Operating pressure | 14.5psi 145psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 0.15J | Theoretical force at 6 bar, retracting | 90N |
Theoretical force at 6 bar, advancing | 121N | Moving mass | 20g |
Product weight | 82g | Type of mounting | Optionally: With through-hole With internal thread With accessories |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Flange screws material | Steel | Cover material | Wrought aluminum alloy, anodized |
Seals material | TPE-U(PUR) | Piston rod material | High-alloy steel |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Manufacturer ID | 536219 |
Specifications may be subject to change without notice
