Product Model

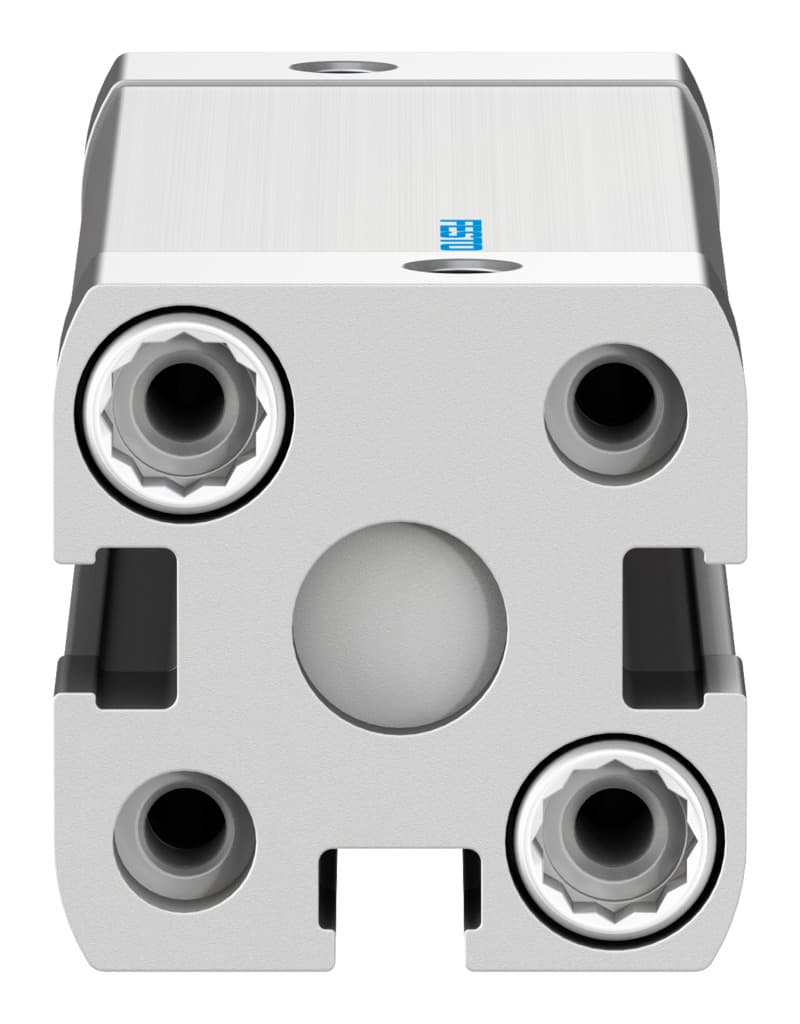

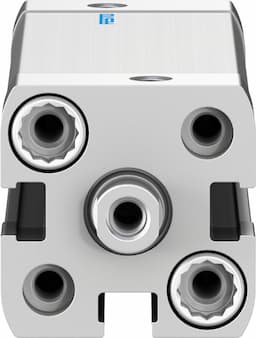

adn-16-70-i-p-a
Selling Points
- 1The ADN-16-70-I-P-A is extremely compact and lightweight, making it ideal for a wide range of automation applications.
- 2Constructed with high-alloy steel for the piston rod and smooth-anodized wrought aluminum alloy for the cylinder barrel, ensuring durability and resistance to corrosion.
- 3Equipped with elastic cushioning rings/pads at both ends, providing smooth operation and reducing wear and tear.
- 4Available with through-hole or internal thread mounting options, allowing for flexible installation in various applications.
- 5Capable of operating under pressures of 0.06 MPa to 1 MPa (0.6 bar to 10 bar), making it suitable for demanding automation tasks.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 70mm | Piston diameter | 16 mm |
Piston rod thread | M4 | Based on norm | ISO 21287 |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Double-acting | Piston rod end | Internal thread |
Position sensing | For proximity sensor | Symbol | 00991217 |
Variants | Piston rod at one end | Operating pressure | 8.7psi 145psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 0.15J | Theoretical force at 6 bar, retracting | 90N |
Theoretical force at 6 bar, advancing | 121N | Moving mass | 42g |
Product weight | 169g | Type of mounting | Optionally: With through-hole With internal thread With accessories |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Flange screws material | Steel | Cover material | Wrought aluminum alloy, anodized |
Seals material | TPE-U(PUR) | Piston rod material | High-alloy steel |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Manufacturer ID | 8178767 |
Specifications may be subject to change without notice
