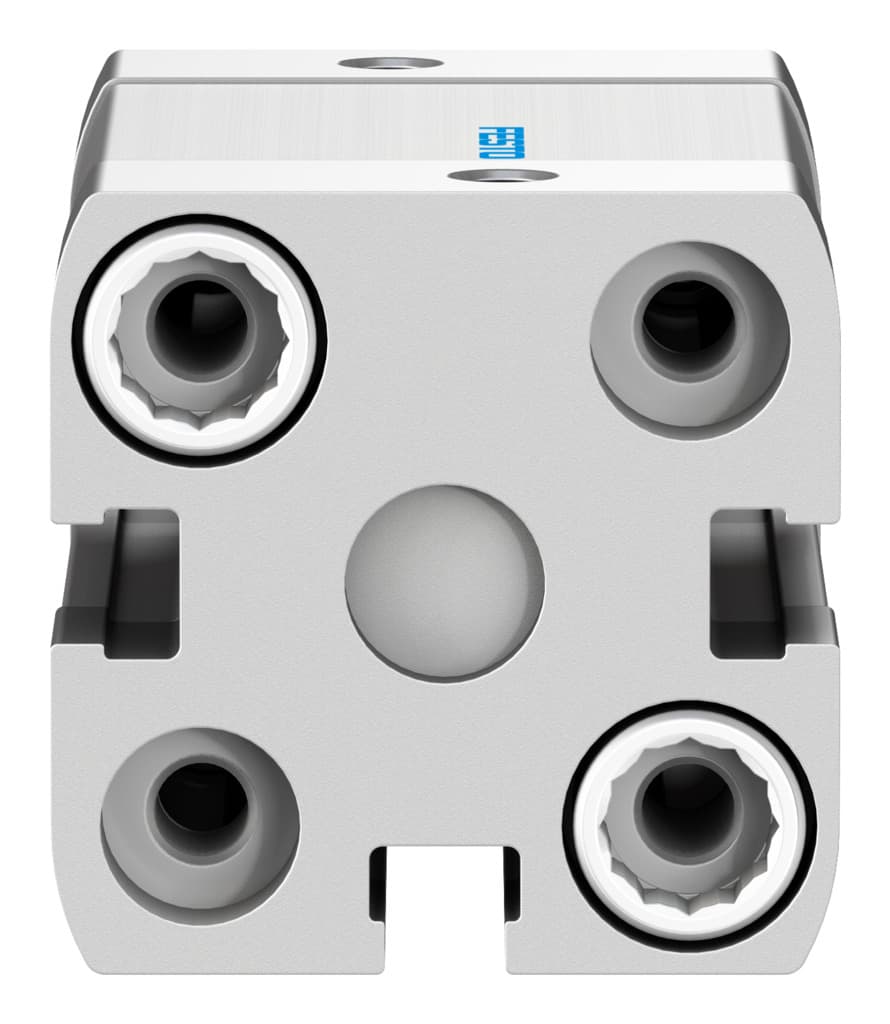

Festo ADN-20-20-A-PPS-A Compact Air Cylinder

Selling Points

1Self-adjusting pneumatic end-position cushioning ensures smooth and precise motion control.
2ISO 21287 compliance guarantees standard adherence for reliable operation.
3High-alloy steel piston rod provides robustness and durability in demanding industrial environments.
4Operating pressure range of 1.5 to 10 bar offers flexibility for various application needs.
5Compact design with arbitrary installation position saves space and enhances versatility in automation systems.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	20mm	Piston diameter	20 mm
Piston rod thread	M8	Cushioning	Self-adjusting pneumatic end-position cushioning
Mounting position	Any	Conforms to standard	ISO 21287
Piston rod end	External thread	Position sensing	For proximity sensor
Symbol	00991217	Variants	Piston rod at one end
Operating pressure	1.5bar 10bar	Mode of operation	Double-acting
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Cleanroom class	Class 6 according to ISO 14644-1	Ambient temperature	-20°C 80°C
Impact energy in the end positions	0.2J	Cushioning length	3mm
Theoretical force at 6 bar, retracting	141N	Theoretical force at 6 bar, advancing	188N
Moving mass	45g	Product weight	172g
Type of mounting	Optionally: With through-hole With internal thread With accessories	Pneumatic connection	M5
Note on materials	RoHS-compliant	Flange screws material	Steel
Cover material	Wrought aluminum alloy, anodized	Seals material	TPE-U(PUR)
Piston rod material	High-alloy steel	Material of cylinder barrel	Wrought aluminum alloy, smooth-anodized
Manufacturer ID	577168

Specifications may be subject to change without notice
