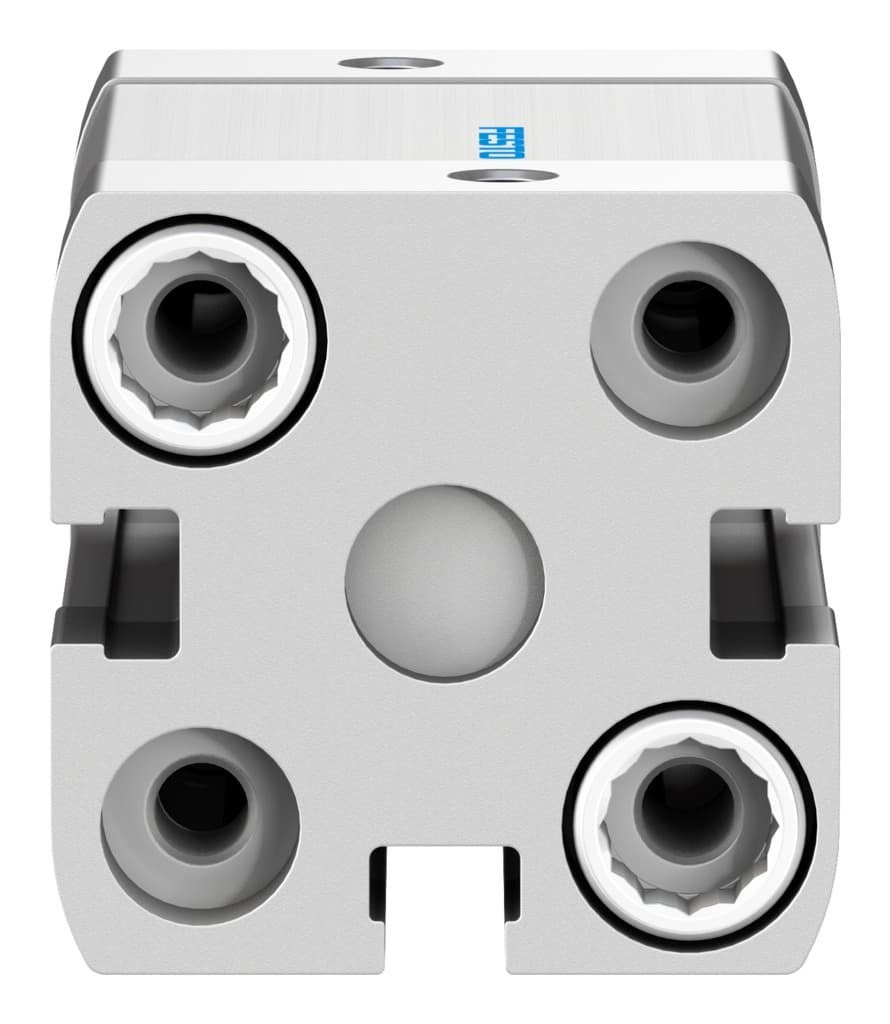

Festo ADN-20-20-I-PPS-A Compact Air Cylinder - Precision & Reliability

Festo adn-20-20-i-pps-a

Selling Points

1Compact Design: Extremely compact dimensions for space-critical applications.
2High Precision: Precise motion control with double-acting operation.
3Robust Construction: Built with high-alloy steel piston rod and anodized aluminum cover.
4Corrosion Resistance: Moderate corrosion stress resistance for durability.
5Efficient Operation: Compatible with compressed air as per ISO 8573-1:2010 [7:4:4] for smooth operation.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	20mm	Piston diameter	20 mm
Piston rod thread	M6	Cushioning	Self-adjusting pneumatic end-position cushioning
Mounting position	Any	Conforms to standard	ISO 21287
Piston rod end	Internal thread	Position sensing	For proximity sensor
Symbol	00991217	Variants	Piston rod at one end
Operating pressure	1.5bar 10bar	Mode of operation	Double-acting
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Cleanroom class	Class 6 according to ISO 14644-1	Ambient temperature	-20°C 80°C
Impact energy in the end positions	0.2J	Cushioning length	3mm
Theoretical force at 6 bar, retracting	141N	Theoretical force at 6 bar, advancing	188N
Moving mass	36g	Product weight	172g
Type of mounting	Optionally: With through-hole With internal thread With accessories	Pneumatic connection	M5
Note on materials	RoHS-compliant	Flange screws material	Steel
Cover material	Wrought aluminum alloy, anodized	Seals material	TPE-U(PUR)
Piston rod material	High-alloy steel	Material of cylinder barrel	Wrought aluminum alloy, smooth-anodized
Manufacturer ID	577160

Specifications may be subject to change without notice
