Product Model

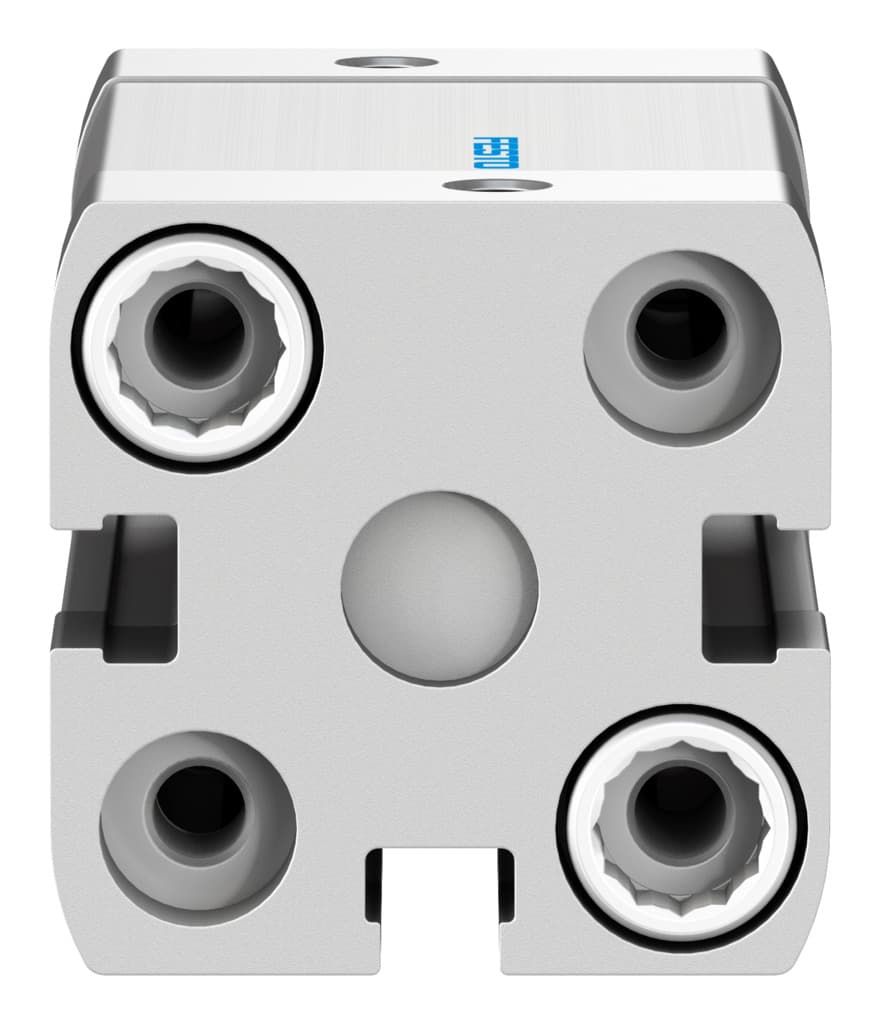

adn-20-25-i-pps-a
Selling Points
- 1Precision Stroke Control: The ADN-20-25-I-PPS-A features a precise stroke length of 25 mm for accurate motion control.
- 2Robust Construction: Built with high-alloy steel piston rods and smooth-anodized aluminum barrels for enhanced durability.
- 3Double Acting: Designed for double-acting operation, ensuring reliable performance in both retracting and advancing modes.
- 4Corrosion Resistance: Moderate corrosion stress resistance (CRC 2) for use in various industrial environments.
- 5Compliant Standards: Meets ISO 21287 standards and is compatible with compressed air as per ISO 8573-1:2010 [7:4:4].
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 25mm | Piston diameter | 20 mm |
Piston rod thread | M6 | Cushioning | Self-adjusting pneumatic end-position cushioning |
Mounting position | Any | Conforms to standard | ISO 21287 |
Piston rod end | Internal thread | Position sensing | For proximity sensor |
Symbol | 00991217 | Variants | Piston rod at one end |
Operating pressure | 1.5bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 0.2J | Cushioning length | 3mm |
Theoretical force at 6 bar, retracting | 141N | Theoretical force at 6 bar, advancing | 188N |
Moving mass | 39g | Product weight | 183g |
Type of mounting | Optionally: With through-hole With internal thread With accessories | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Flange screws material | Steel |
Cover material | Wrought aluminum alloy, anodized | Seals material | TPE-U(PUR) |
Piston rod material | High-alloy steel | Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
Manufacturer ID | 577161 |
Specifications may be subject to change without notice
