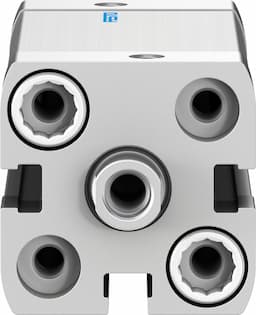

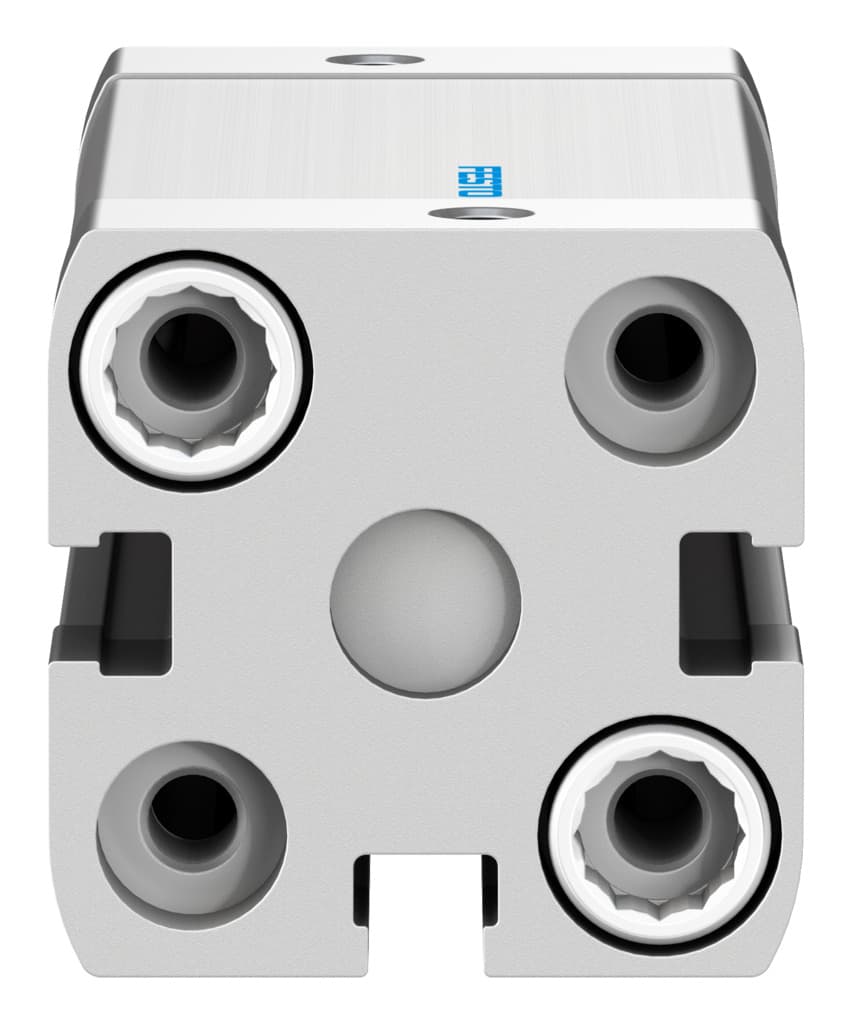

Festo ADN-20-40-I-PPS-A Compact Air Cylinder

Selling Points

1Precision Motion Control: Delivers precise motion control with self-adjusting pneumatic end-position cushioning.
2Robust Design: Constructed with high-alloy steel piston rod and aluminum alloy cylinder barrel for durability.
3Versatile Mounting: Can be mounted in any position, enhancing flexibility in industrial automation.
4Compliant Standards: Conforms to ISO 21287, ensuring high-quality performance and safety.
5Efficient Operation: Operates with compressed air, allowing for lubricated operation for extended use.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	40mm	Piston diameter	20 mm
Piston rod thread	M6	Cushioning	Self-adjusting pneumatic end-position cushioning
Mounting position	Any	Conforms to standard	ISO 21287
Piston rod end	Internal thread	Position sensing	For proximity sensor
Symbol	00991217	Variants	Piston rod at one end
Operating pressure	1.5bar 10bar	Mode of operation	Double-acting
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Cleanroom class	Class 6 according to ISO 14644-1	Ambient temperature	-20°C 80°C
Impact energy in the end positions	0.2J	Cushioning length	3mm
Theoretical force at 6 bar, retracting	141N	Theoretical force at 6 bar, advancing	188N
Moving mass	49g	Product weight	216g
Type of mounting	Optionally: With through-hole With internal thread With accessories	Pneumatic connection	M5
Note on materials	RoHS-compliant	Flange screws material	Steel
Cover material	Wrought aluminum alloy, anodized	Seals material	TPE-U(PUR)
Piston rod material	High-alloy steel	Material of cylinder barrel	Wrought aluminum alloy, smooth-anodized
Manufacturer ID	577163
