Product Model
adn-20-5-a-p-a
Selling Points

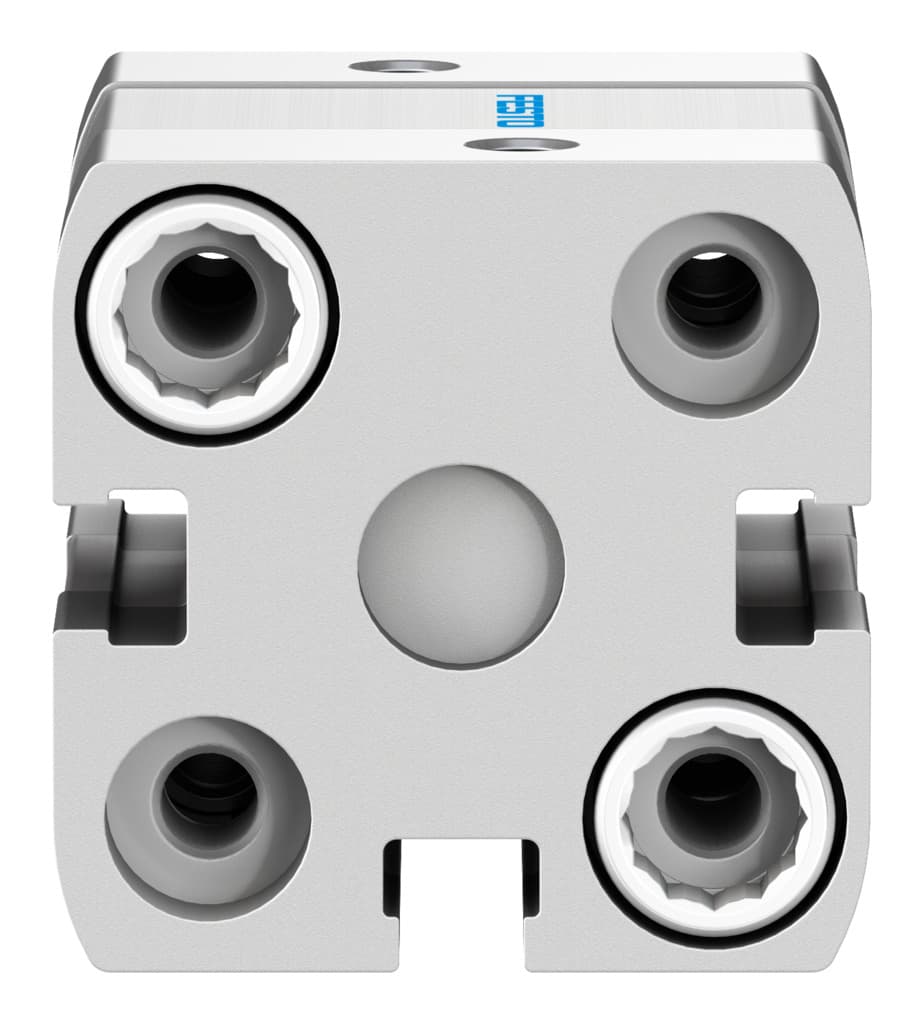

- 1The Festo ADN-20-5-A-P-A compact cylinder is designed for double-acting applications, ensuring efficient operation in various industrial settings.
- 2With a 5mm bore size and 20mm stroke, this cylinder offers precise control and versatility in pneumatic systems.
- 3Equipped with elastic cushioning rings/plates at both ends, the ADN-20-5-A-P-A provides smooth operation and extended lifespan.
- 4The cylinder features a piston rod thread of M8, making it compatible with a wide range of pneumatic actuators and drives.
- 5Ideal for use in compact pneumatic systems, the ADN-20-5-A-P-A is perfect for applications requiring high precision and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 5mm | Piston diameter | 20 mm |
Piston rod thread | M8 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Conforms to standard | ISO 21287 |
Piston rod end | External thread | Position sensing | For proximity sensor |
Symbol | 00991217 | Variants | Piston rod at one end |
Operating pressure | 0.6bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 0.2J | Theoretical force at 6 bar, retracting | 141N |
Theoretical force at 6 bar, advancing | 188N | Moving mass | 35g |
Product weight | 139g | Type of mounting | Optionally: With through-hole With internal thread With accessories |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Flange screws material | Steel | Cover material | Wrought aluminum alloy, anodized |
Seals material | TPE-U(PUR) | Piston rod material | High-alloy steel |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Manufacturer ID | 536234 |
Specifications may be subject to change without notice
