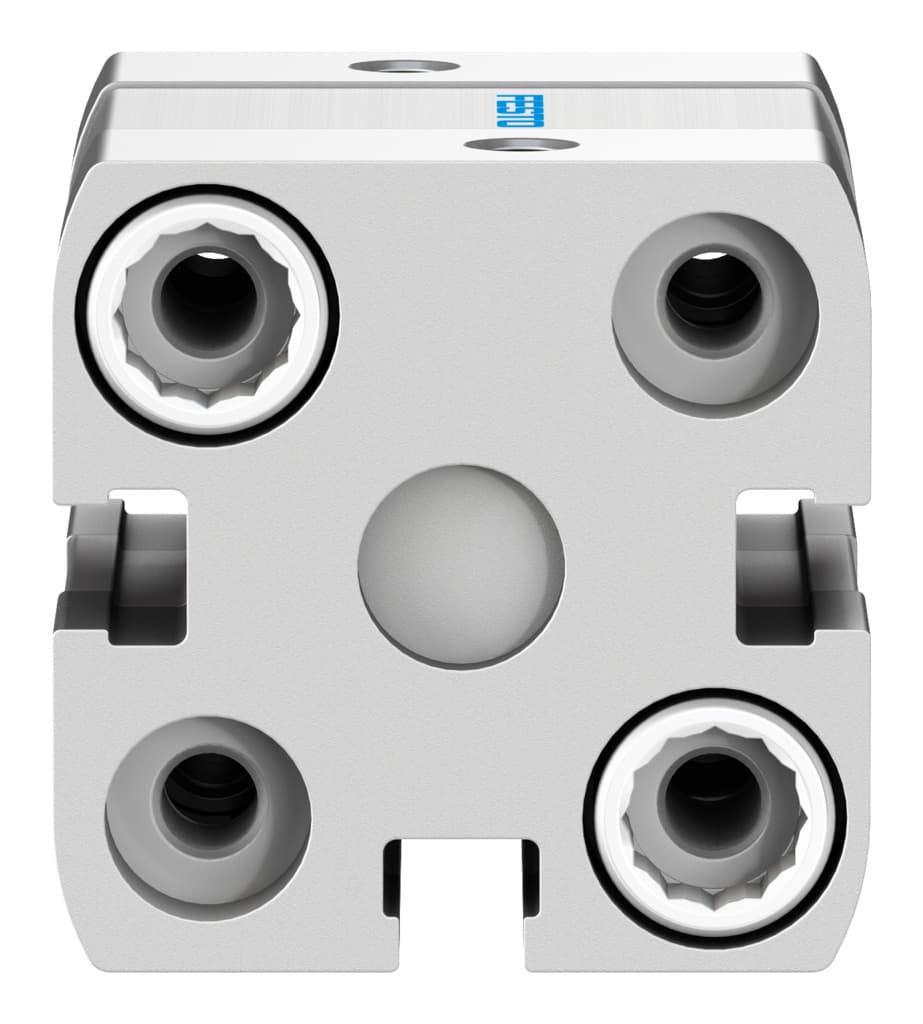

Festo ADN-20-5-I-P-A Compact Cylinder

Selling Points

1The ADN-20-5-I-P-A features flexible cushioning rings at both ends for smooth operation and reduced wear.
2This ISO compact cylinder is designed for space-efficient applications, making it perfect for tight spaces.
3With a piston diameter of 20 mm, this cylinder offers robust performance in pneumatic systems.
4The ADN-20-5-I-P-A has a stroke length of 5 mm, suitable for applications requiring precise movement control.
5It operates within a pressure range of 0.6 to 10 bar, ensuring reliable performance in various pneumatic setups.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	5mm	Piston diameter	20 mm
Piston rod thread	M6	Cushioning	Elastic cushioning rings/pads at both ends
Mounting position	Any	Conforms to standard	ISO 21287
Piston rod end	Internal thread	Position sensing	For proximity sensor
Symbol	00991217	Variants	Piston rod at one end
Operating pressure	0.6bar 10bar	Mode of operation	Double-acting
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Cleanroom class	Class 6 according to ISO 14644-1	Ambient temperature	-20°C 80°C
Impact energy in the end positions	0.2J	Theoretical force at 6 bar, retracting	141N
Theoretical force at 6 bar, advancing	188N	Moving mass	26g
Product weight	130g	Type of mounting	Optionally: With through-hole With internal thread With accessories
Pneumatic connection	M5	Note on materials	RoHS-compliant
Flange screws material	Steel	Cover material	Wrought aluminum alloy, anodized
Seals material	TPE-U(PUR)	Piston rod material	High-alloy steel
Material of cylinder barrel	Wrought aluminum alloy, smooth-anodized	Manufacturer ID	536242

Specifications may be subject to change without notice
