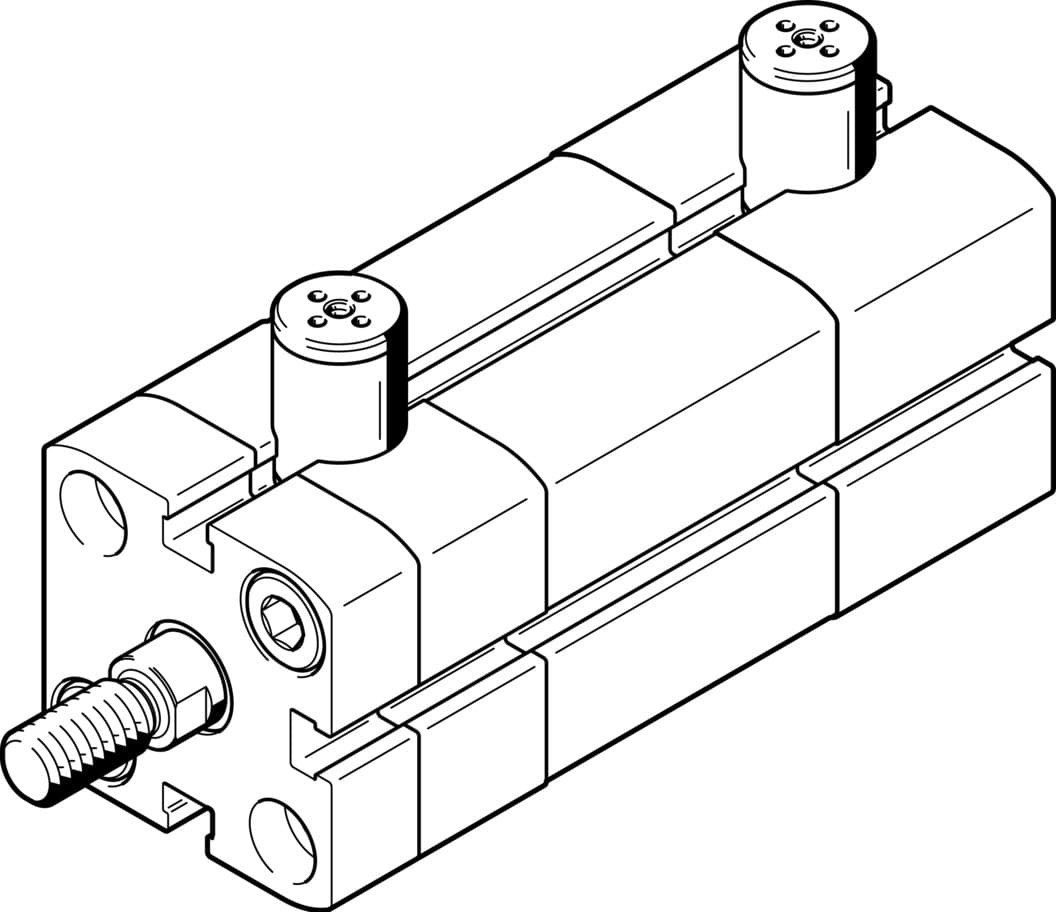

Product Model
adn-20- -el-
Selling Points
- 1The ADN-20 series features a compact design, reducing installation space by up to 50% compared to ISO cylinders.
- 2These cylinders operate double-acting, allowing for precise motion control and effective task execution.
- 3The ADN-20 series offers a wide range of variants for customized applications, including magnetic pistons for position sensing.
- 4Constructed with high-alloy steel piston rods and smooth-anodized wrought aluminum alloy cylinder barrels, ensuring durability and corrosion resistance.
- 5Compatible with compressed air as per ISO 8573-1:2010 and can operate with oil lubrication for enhanced performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10mm 300mm | Piston diameter | 20 mm |
Piston rod thread | M8 | Based on norm | ISO 21287 |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Piston rod end | Internal thread | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Variants | With end-position locking at both ends With rear end-position locking With front end-position locking Extended external thread piston rod Special thread on piston rod Extended piston rod Laser etched rating plate |
Operating pressure | 2.5bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.2J |
Theoretical force at 6 bar, retracting | 141N | Theoretical force at 6 bar, advancing | 188N |
Additional moving mass per 10?mm stroke | 6g | Type of mounting | With internal thread With accessories |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy Anodized | Piston rod material | High-alloy steel |
Material of cylinder barrel | Wrought aluminum alloy Smooth anodized | Manufacturer ID | 548214 |
Specifications may be subject to change without notice
