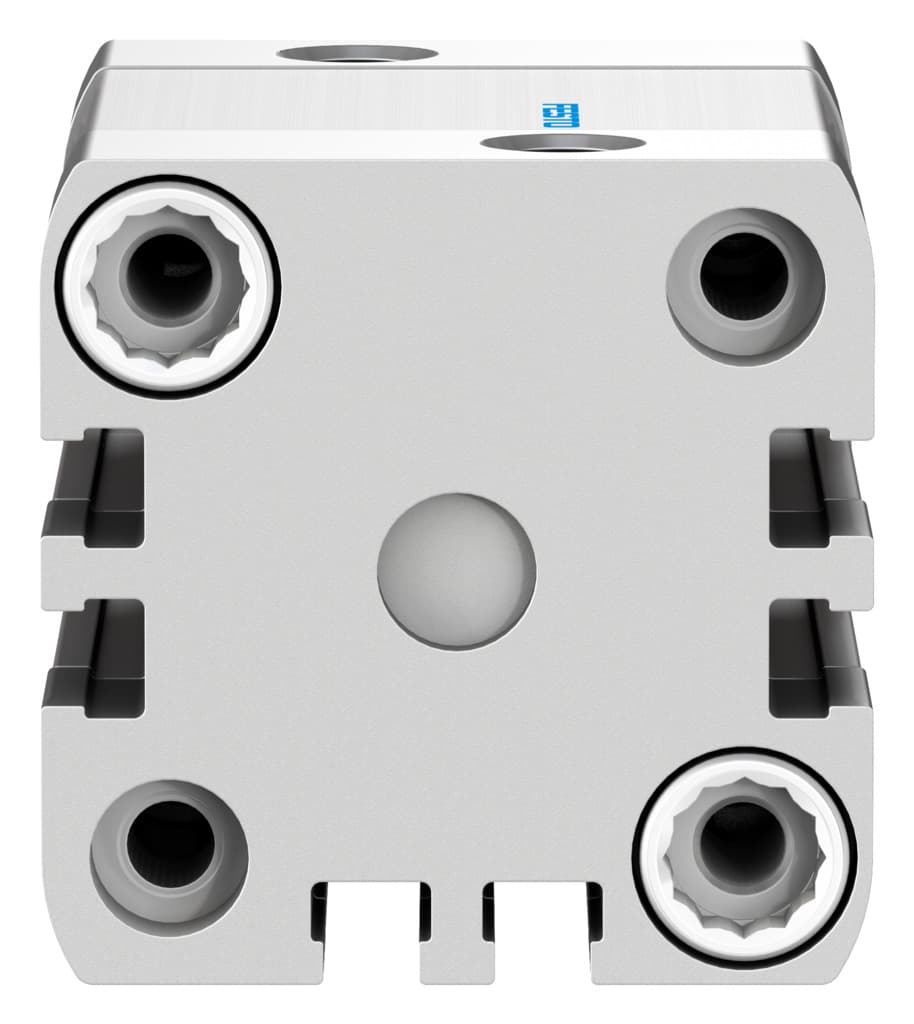

Festo ADN-32-20-I-PPS-A Compact Air Cylinder

Selling Points

1The Festo ADN-32-20-I-PPS-A offers precise motion control with a stroke of 20 mm and a piston diameter of 32 mm.
2Features self-adjusting pneumatic end-position cushioning for smooth and reliable operation.
3Built with high-alloy steel piston rod and wrought aluminum alloy barrel, ensuring durability and corrosion resistance.
4Can be mounted in any position with optional through-hole or internal thread configurations.
5Meets ISO 21287 standards and is RoHS-compliant, making it suitable for various industrial applications.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	20mm	Piston diameter	32 mm
Piston rod thread	M8	Cushioning	Self-adjusting pneumatic end-position cushioning
Mounting position	Any	Conforms to standard	ISO 21287
Piston rod end	Internal thread	Position sensing	For proximity sensor
Symbol	00992970	Variants	Piston rod at one end
Operating pressure	1.5bar 10bar	Mode of operation	Double-acting
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Cleanroom class	Class 6 according to ISO 14644-1	Ambient temperature	-20°C 80°C
Impact energy in the end positions	1J	Cushioning length	4mm
Theoretical force at 6 bar, retracting	415N	Theoretical force at 6 bar, advancing	483N
Moving mass	76g	Product weight	305g
Type of mounting	Optionally: With through-hole With internal thread With accessories	Pneumatic connection	G1/8
Note on materials	RoHS-compliant	Flange screws material	Steel
Cover material	Wrought aluminum alloy, anodized	Seals material	TPE-U(PUR)
Piston rod material	High-alloy steel	Material of cylinder barrel	Wrought aluminum alloy, smooth-anodized
Manufacturer ID	572648

Specifications may be subject to change without notice
