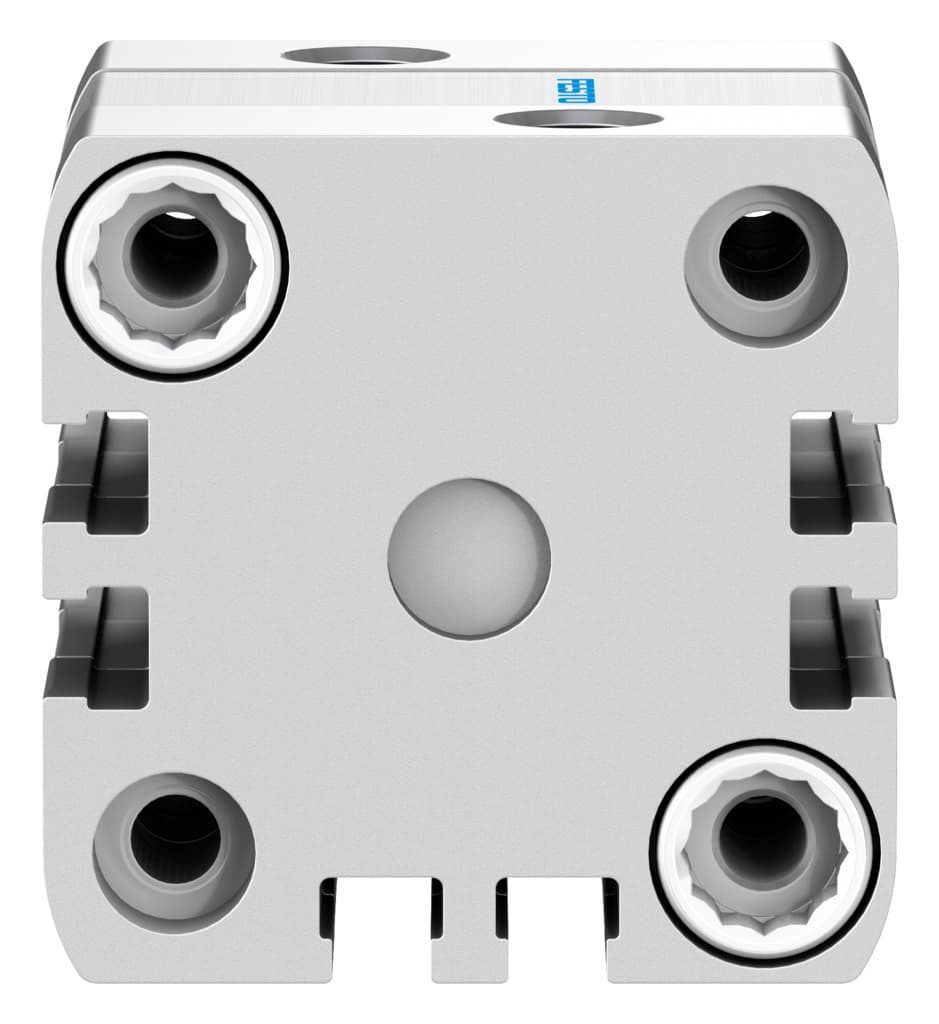

Festo ADN-32-5-A-P-A Compact Double-Acting Cylinder

Selling Points

1The Festo ADN-32-5-A-P-A is designed for space efficiency, making it perfect for applications where size is a concern.
2This cylinder operates in both directions, providing consistent performance and reliability in your automation tasks.
3Equipped with flexible cushioning rings/plates at both ends, this cylinder ensures smooth operation and reduces wear and tear.
4With a maximum operating pressure of 10 bar, the ADN-32-5-A-P-A is suitable for demanding applications.
5Conforms to the standard ISO 21287, ensuring compatibility and reliability in your pneumatic systems.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	5mm	Piston diameter	32 mm
Piston rod thread	M10x1.25	Cushioning	Elastic cushioning rings/pads at both ends
Mounting position	Any	Conforms to standard	ISO 21287
Piston rod end	External thread	Position sensing	For proximity sensor
Symbol	00991217	Variants	Piston rod at one end
Operating pressure	0.6bar 10bar	Mode of operation	Double-acting
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Cleanroom class	Class 6 according to ISO 14644-1	Ambient temperature	-20°C 80°C
Impact energy in the end positions	0.4J	Theoretical force at 6 bar, retracting	415N
Theoretical force at 6 bar, advancing	483N	Moving mass	81g
Product weight	280g	Type of mounting	Optionally: With through-hole With internal thread With accessories
Pneumatic connection	G1/8	Note on materials	RoHS-compliant
Flange screws material	Steel	Cover material	Wrought aluminum alloy, anodized
Seals material	TPE-U(PUR)	Piston rod material	High-alloy steel
Material of cylinder barrel	Wrought aluminum alloy, smooth-anodized	Manufacturer ID	536268

Specifications may be subject to change without notice
