Product Model

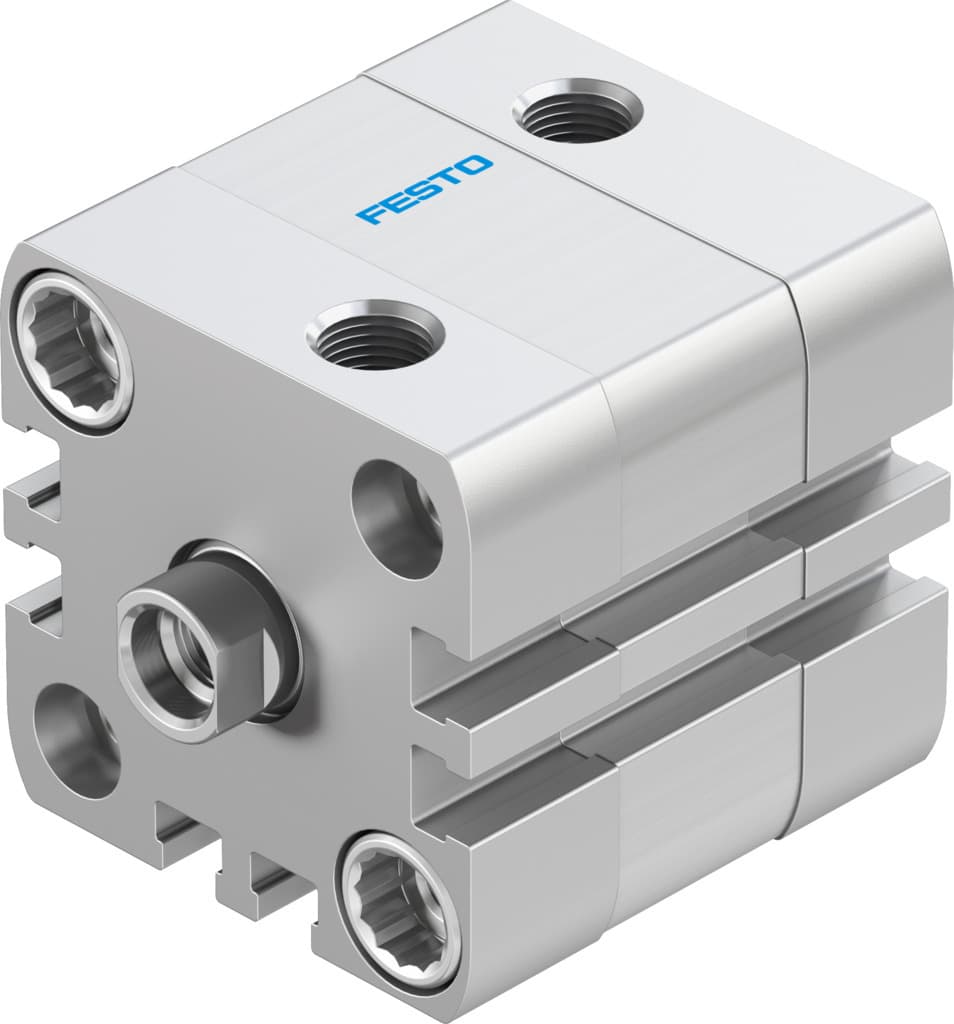

adn-32-5-i-p-a
Selling Points
- 1The ADN-32-5-I-P-A compact pneumatic cylinder is designed with a 5 mm stroke and 32 mm piston diameter, ensuring precise control and long-lasting performance in various industrial applications.
- 2Equipped with elastic cushioning rings/plates at both ends, this cylinder reduces noise and saves time by minimizing end-position impacts, making it ideal for applications requiring smooth operation.
- 3The ADN-32-5-I-P-A cylinder adheres to the ISO 21287 standard, ensuring high-quality and reliable performance in a wide range of industrial settings.
- 4Available with through-hole or female thread mounting options, this cylinder offers flexibility in installation, making it suitable for various manufacturing and production systems.
- 5Constructed from high-alloy steel for the piston rod and smooth-anodized aluminum alloy for the cylinder barrel, the ADN-32-5-I-P-A provides moderate corrosion resistance and durability in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 5mm | Piston diameter | 32 mm |
Piston rod thread | M8 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Conforms to standard | ISO 21287 |
Piston rod end | Internal thread | Position sensing | For proximity sensor |
Symbol | 00991217 | Variants | Piston rod at one end |
Operating pressure | 0.6bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 0.4J | Theoretical force at 6 bar, retracting | 415N |
Theoretical force at 6 bar, advancing | 483N | Moving mass | 55g |
Product weight | 254g | Type of mounting | Optionally: With through-hole With internal thread With accessories |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Flange screws material | Steel | Cover material | Wrought aluminum alloy, anodized |
Seals material | TPE-U(PUR) | Piston rod material | High-alloy steel |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Manufacturer ID | 536278 |
Specifications may be subject to change without notice
