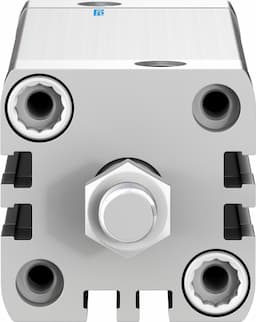

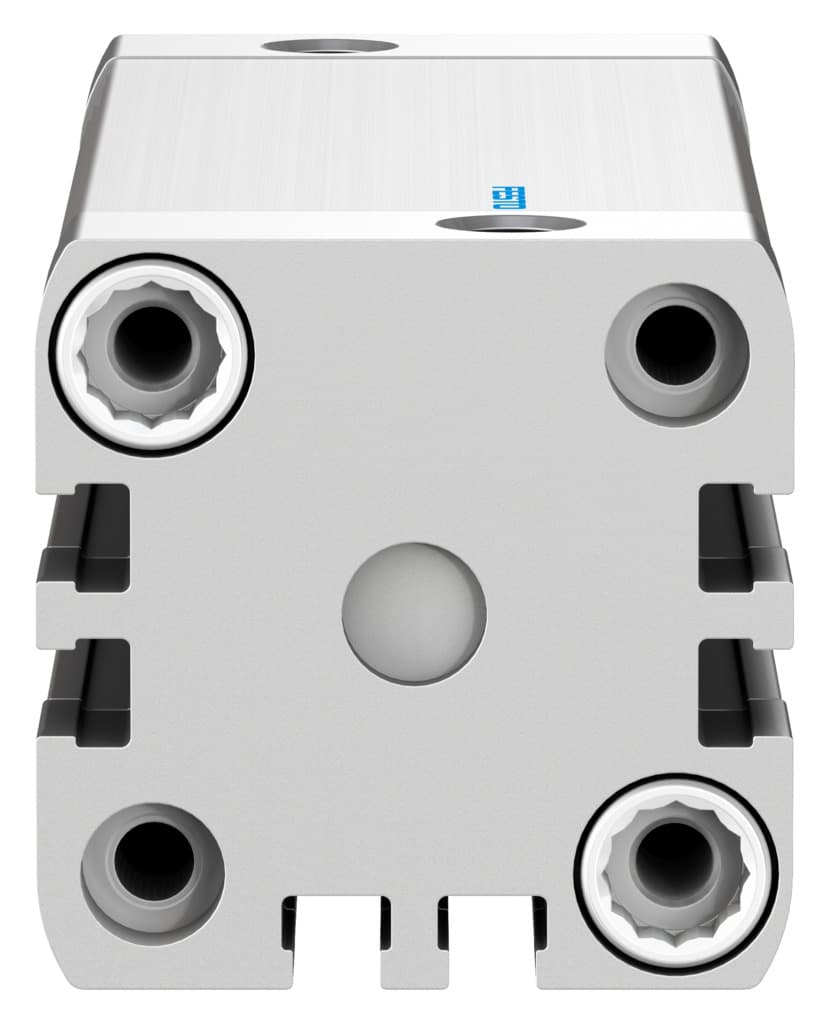

Festo ADN-32-80-A-PPS-A Compact Cylinder - High Performance Pneumatic Solution

Selling Points

1Self-Adjusting Pneumatic End-Position Cushioning: Ensures smooth operation and reduces wear on the cylinder.
2Compact Design: Minimizes installation space, making it ideal for modern automation systems.
3High Corrosion Resistance: Conforms to ISO 21287 and has a low to moderate corrosion stress classification (CRC).
4Versatile Mounting Options: Available with through-hole, internal thread, and accessory mounting types.
5Precision Position Sensing: Compatible with proximity sensors for accurate position detection.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	80mm	Piston diameter	32 mm
Piston rod thread	M10x1.25	Cushioning	Self-adjusting pneumatic end-position cushioning
Mounting position	Any	Conforms to standard	ISO 21287
Piston rod end	External thread	Position sensing	For proximity sensor
Symbol	00992970	Variants	Piston rod at one end
Operating pressure	1.5bar 10bar	Mode of operation	Double-acting
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Cleanroom class	Class 6 according to ISO 14644-1	Ambient temperature	-20°C 80°C
Impact energy in the end positions	1J	Cushioning length	4mm
Theoretical force at 6 bar, retracting	415N	Theoretical force at 6 bar, advancing	483N
Moving mass	156g	Product weight	508g
Type of mounting	Optionally: With through-hole With internal thread With accessories	Pneumatic connection	G1/8
Note on materials	RoHS-compliant	Flange screws material	Steel
Cover material	Wrought aluminum alloy, anodized	Seals material	TPE-U(PUR)
Piston rod material	High-alloy steel	Material of cylinder barrel	Wrought aluminum alloy, smooth-anodized
Manufacturer ID	572663

Specifications may be subject to change without notice
