Product Model
adn-32- -el-
Selling Points

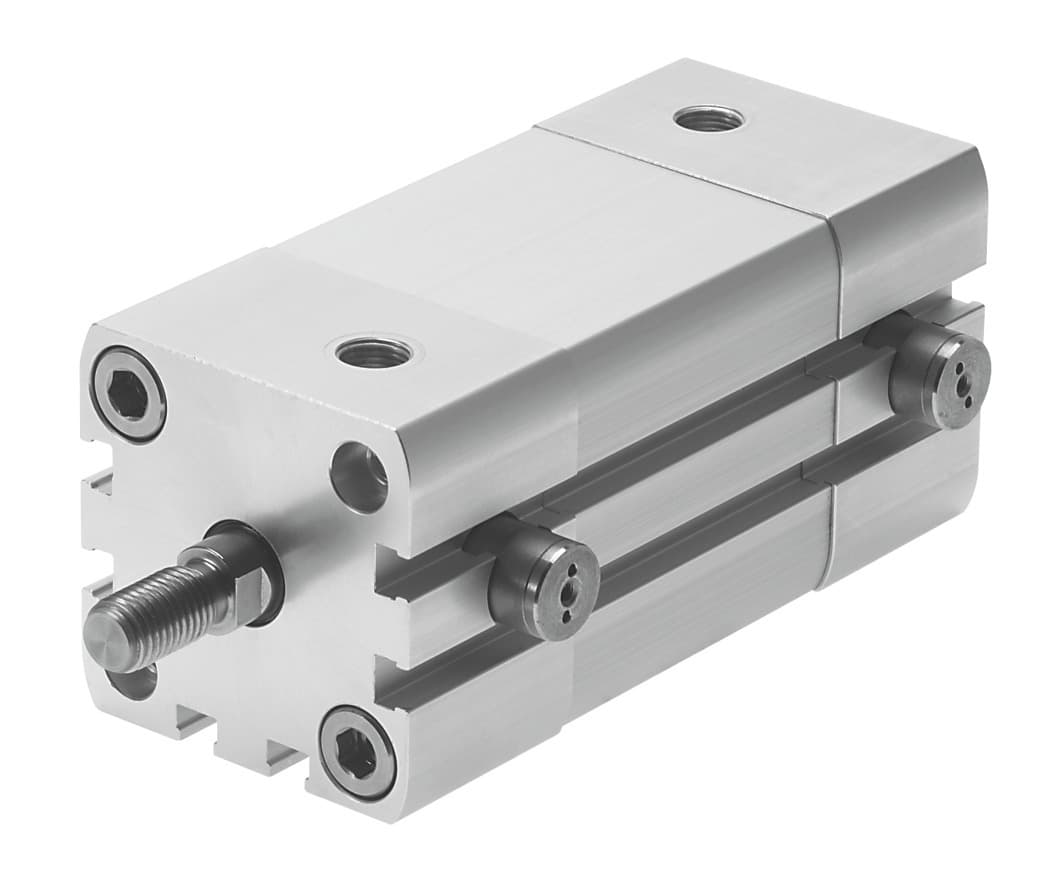

- 1The Festo ADN-32- -EL is engineered for precise movements, ensuring reliable performance in a variety of industrial settings.
- 2Equipped with elastic cushioning rings/pads at both ends, this cylinder provides smooth operation and reduces wear and tear.
- 3Available for any mounting position, the ADN-32- -EL offers flexibility in installation, making it suitable for diverse applications.
- 4With a compact design, this pneumatic cylinder is perfect for short-stroke applications where space is limited.
- 5Constructed from high-quality materials, including smooth-anodized aluminum alloy and high-alloy steel, ensuring durability and longevity.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10mm 400mm | Piston diameter | 32 mm |
Piston rod thread | M10x1.25 | Based on norm | ISO 21287 |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Piston rod end | Internal thread | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Variants | With end-position locking at both ends With rear end-position locking With front end-position locking Extended external thread piston rod Special thread on piston rod Extended piston rod Laser etched rating plate |
Operating pressure | 2.5bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.4J |
Theoretical force at 6 bar, retracting | 415N | Theoretical force at 6 bar, advancing | 483N |
Additional moving mass per 10?mm stroke | 9g | Type of mounting | With internal thread With accessories |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy Anodized | Piston rod material | High-alloy steel |
Material of cylinder barrel | Wrought aluminum alloy Smooth anodized | Manufacturer ID | 548216 |
Specifications may be subject to change without notice
