Product Model

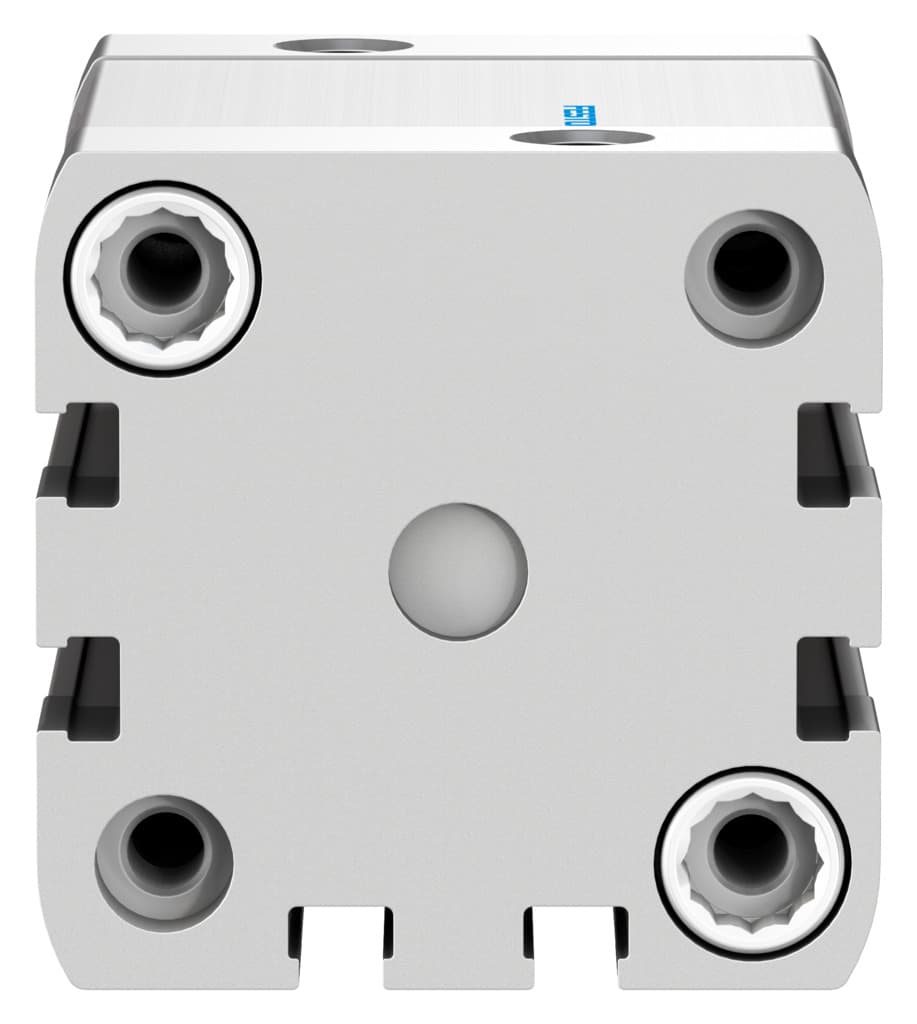

adn-40-35-a-p-a
Selling Points
- 1The ADN-40-35-A-P-A cylinder is equipped with elastic cushioning rings/plates at both ends, ensuring smooth operation and reducing wear and tear.
- 2Designed for double-acting operation, this cylinder provides balanced forces in both the advancing and retracting strokes, enhancing overall efficiency.
- 3With a corrosion resistance class of CRC 2, this cylinder is suitable for harsh environments, ensuring long-lasting performance.
- 4The ADN-40-35-A-P-A cylinder features a compact design, making it ideal for applications where space is limited.
- 5Equipped with a proximity switch for position detection, this cylinder ensures precise control and accurate positioning in various industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 35mm | Piston diameter | 40 mm |
Piston rod thread | M10x1.25 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Conforms to standard | ISO 21287 |
Piston rod end | External thread | Position sensing | For proximity sensor |
Symbol | 00991217 | Variants | Piston rod at one end |
Operating pressure | 0.6bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 0.7J | Theoretical force at 6 bar, retracting | 686N |
Theoretical force at 6 bar, advancing | 754N | Moving mass | 135g |
Product weight | 495g | Type of mounting | Optionally: With through-hole With internal thread With accessories |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Flange screws material | Steel | Cover material | Wrought aluminum alloy, anodized |
Seals material | TPE-U(PUR) | Piston rod material | High-alloy steel |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Manufacturer ID | 8179031 |
Specifications may be subject to change without notice
