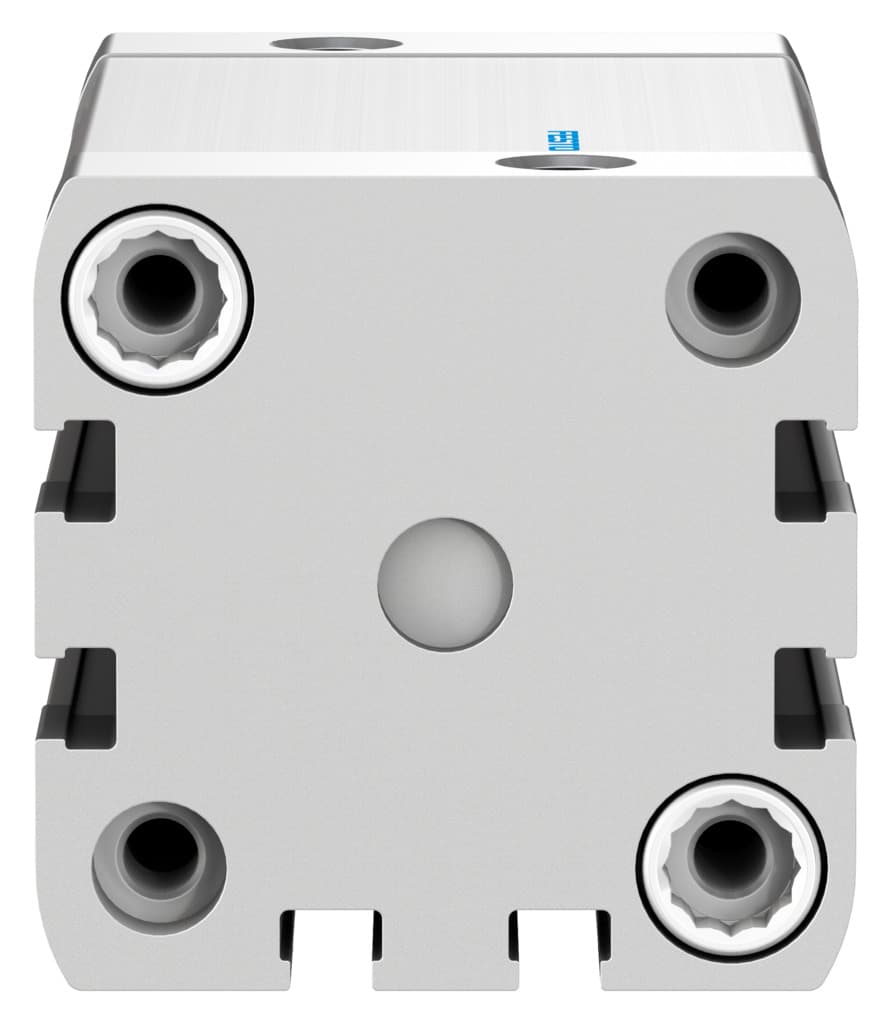

Festo ADN-40-50-A-PPS-A Compact Cylinder - High-Performance Pneumatic Solution

Selling Points

1Ideal for space-constrained applications with a stroke length of 40 mm and piston diameter of 50 mm.
2Ensures smooth operation with self-adjusting pneumatic end-position cushioning.
3Supports both forward and reverse strokes, enhancing versatility in various applications.
4Built with high-alloy steel piston rod and smooth-anodised wrought aluminium alloy cylinder barrel for durability.
5Meets ISO 21287 standards and is RoHS compliant, ensuring environmental responsibility.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	50mm	Piston diameter	40 mm
Piston rod thread	M10x1.25	Cushioning	Self-adjusting pneumatic end-position cushioning
Mounting position	Any	Conforms to standard	ISO 21287
Piston rod end	External thread	Position sensing	For proximity sensor
Symbol	00992970	Variants	Piston rod at one end
Operating pressure	1bar 10bar	Mode of operation	Double-acting
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Cleanroom class	Class 6 according to ISO 14644-1	Ambient temperature	-20°C 80°C
Impact energy in the end positions	1.7J	Cushioning length	5mm
Theoretical force at 6 bar, retracting	686N	Theoretical force at 6 bar, advancing	754N
Moving mass	159g	Product weight	564g
Type of mounting	Optionally: With through-hole With internal thread With accessories	Pneumatic connection	G1/8
Note on materials	RoHS-compliant	Flange screws material	Steel
Cover material	Wrought aluminum alloy, anodized	Seals material	TPE-U(PUR)
Piston rod material	High-alloy steel	Material of cylinder barrel	Wrought aluminum alloy, smooth-anodized
Manufacturer ID	572679

Specifications may be subject to change without notice
