Product Model

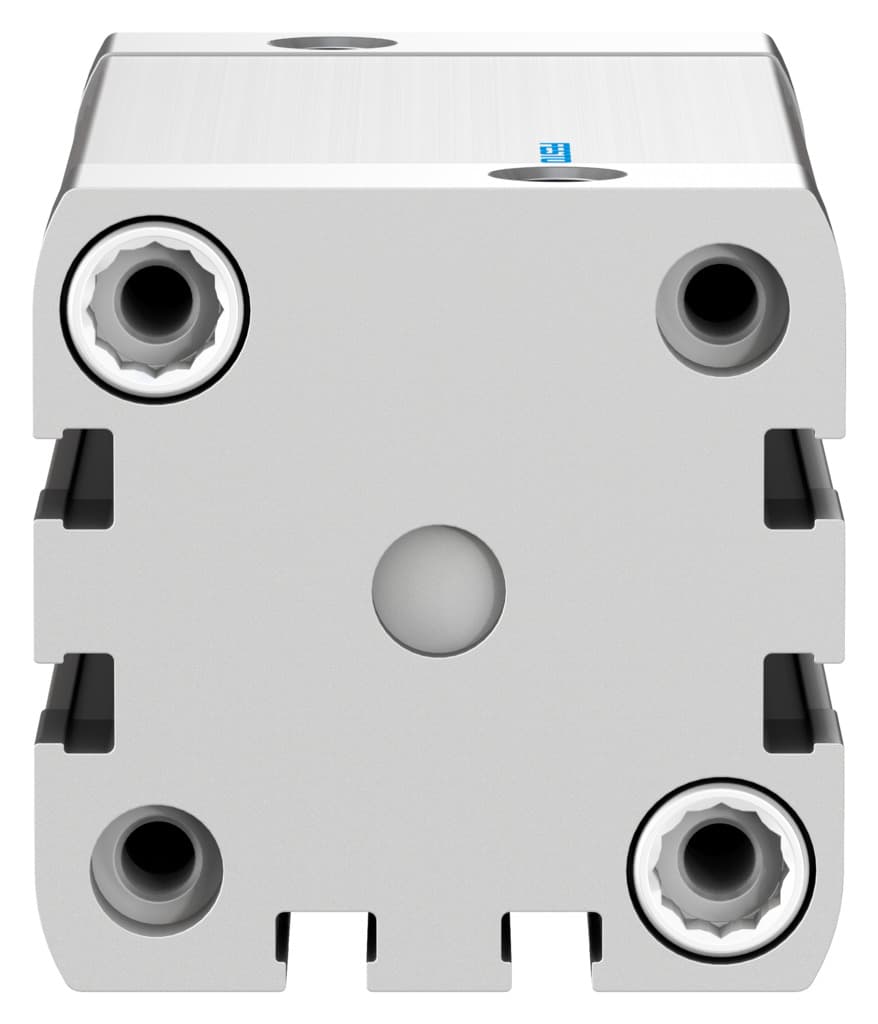

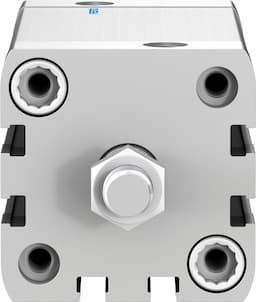

adn-40-60-a-pps-a
Selling Points
- 1Compact design with 40mm piston diameter and 60mm stroke.
- 2Self-adjusting pneumatic end-position cushioning for smooth operation.
- 3Conforms to ISO 21287 standards for reliability and precision.
- 4Double-acting mode of operation with compressed air to ISO 8573-1:2010 [7:4:4].
- 5Corrosion resistance class CRC 2 - Moderate corrosion stress, ensuring durability in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 60mm | Piston diameter | 40 mm |
Piston rod thread | M10x1.25 | Cushioning | Self-adjusting pneumatic end-position cushioning |
Mounting position | Any | Conforms to standard | ISO 21287 |
Piston rod end | External thread | Position sensing | For proximity sensor |
Symbol | 00992970 | Variants | Piston rod at one end |
Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 1.7J | Cushioning length | 5mm |
Theoretical force at 6 bar, retracting | 686N | Theoretical force at 6 bar, advancing | 754N |
Moving mass | 168g | Product weight | 602g |
Type of mounting | Optionally: With through-hole With internal thread With accessories | Pneumatic connection | G1/8 |
Note on materials | RoHS-compliant | Flange screws material | Steel |
Cover material | Wrought aluminum alloy, anodized | Seals material | TPE-U(PUR) |
Piston rod material | High-alloy steel | Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
Manufacturer ID | 572680 |
Specifications may be subject to change without notice
