Product Model
adn-40-80-a-p-a
Selling Points

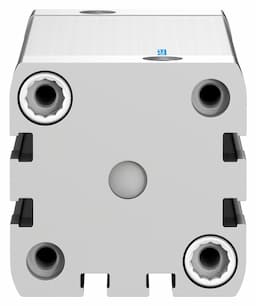

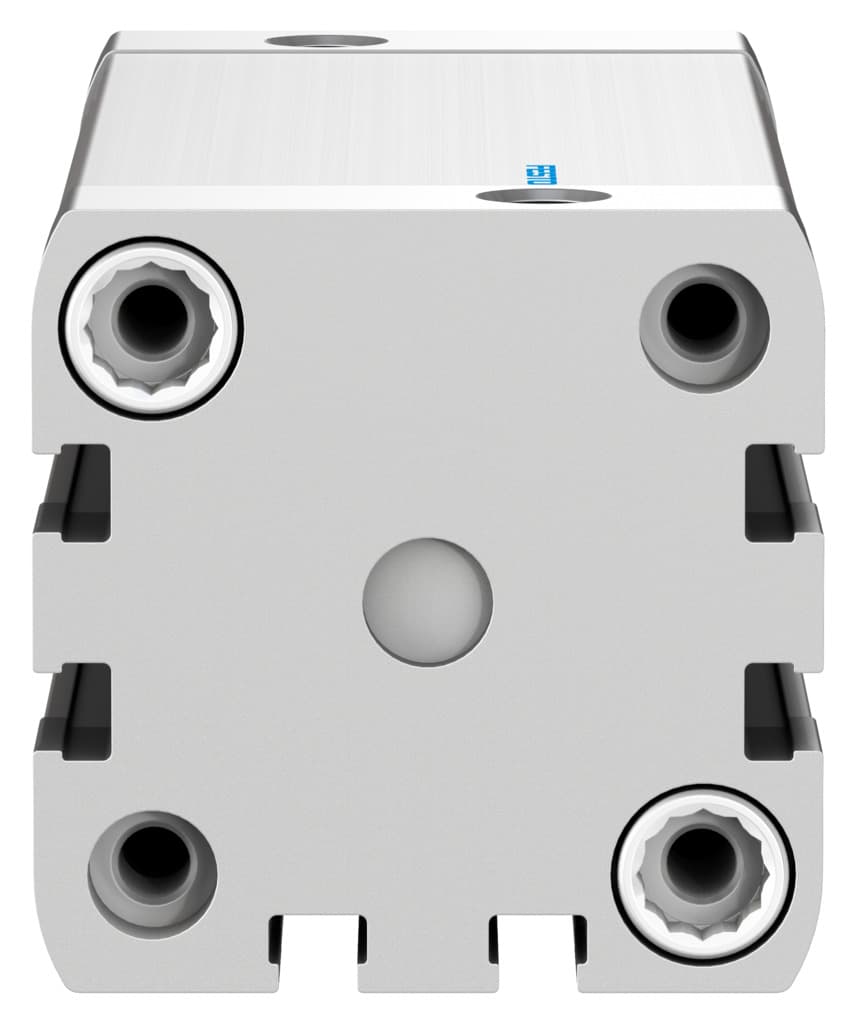

- 1Compact Design and High Precision: The Festo ADN-40-80-A-P-A compact cylinder offers a stroke length of 80 mm and a piston diameter of 40 mm, making it perfect for applications requiring precise movement.
- 2Double-Acting Operation: This cylinder operates double-acting, allowing for both extension and retraction strokes, enhancing its versatility in various industrial applications.
- 3Elastic Cushioning for Smooth Operation: Equipped with elastic cushioning rings/plates at both ends, the ADN-40-80-A-P-A ensures smooth operation and reduces wear and tear on the cylinder.
- 4Compliant with ISO 21287: The cylinder conforms to the international standard ISO 21287, ensuring it meets rigorous quality and performance criteria.
- 5Versatile Mounting Options: Available in various mounting positions, including through-hole, female thread, and with accessories, the ADN-40-80-A-P-A offers flexibility in installation and integration into different systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 80mm | Piston diameter | 40 mm |
Piston rod thread | M10x1.25 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Conforms to standard | ISO 21287 |
Piston rod end | External thread | Position sensing | For proximity sensor |
Symbol | 00991217 | Variants | Piston rod at one end |
Operating pressure | 0.6bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 0.7J | Theoretical force at 6 bar, retracting | 686N |
Theoretical force at 6 bar, advancing | 754N | Moving mass | 175g |
Product weight | 668g | Type of mounting | Optionally: With through-hole With internal thread With accessories |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Flange screws material | Steel | Cover material | Wrought aluminum alloy, anodized |
Seals material | TPE-U(PUR) | Piston rod material | High-alloy steel |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Manufacturer ID | 536298 |
Specifications may be subject to change without notice
