Product Model
adn-40- -kp-
Selling Points

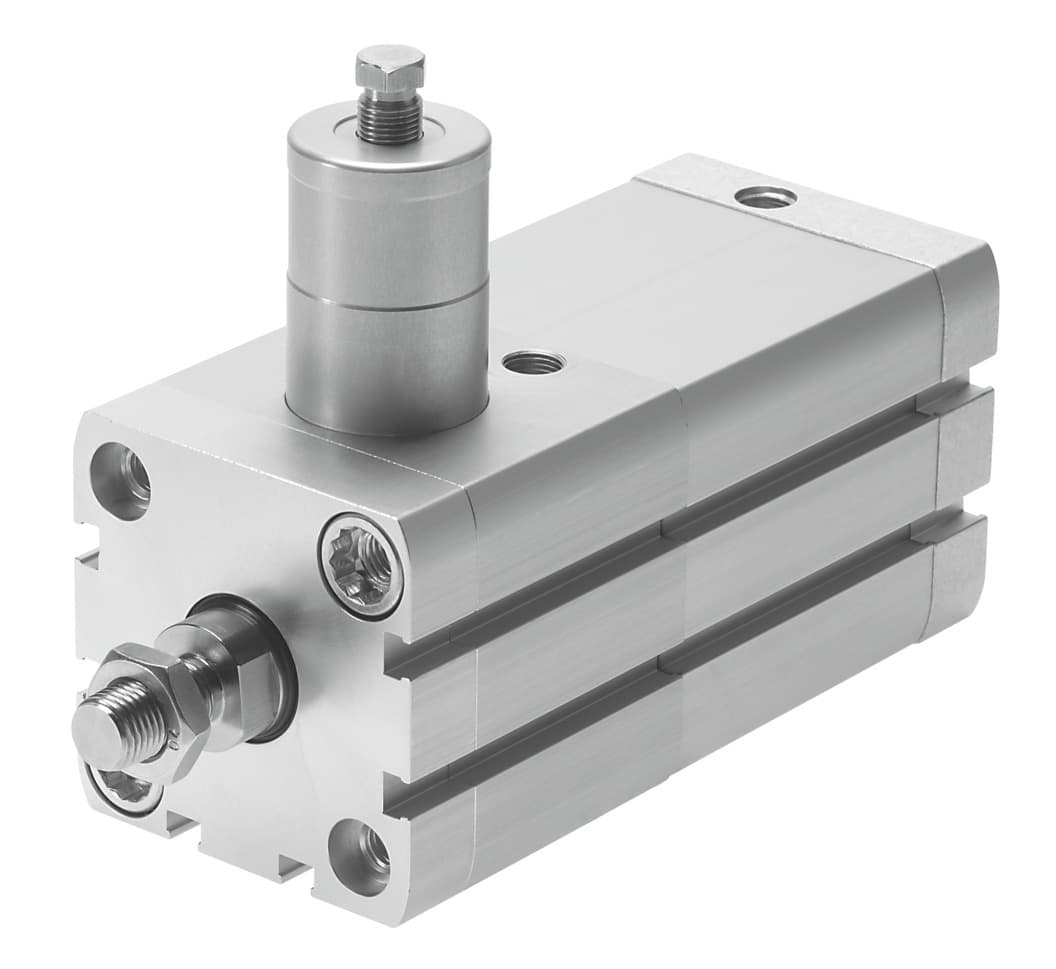

- 1The Festo ADN-40 series offers a compact design, up to 50% smaller than standard pneumatic cylinders, making it ideal for constrained spaces.
- 2Engineered for precise linear motion, these cylinders provide high-performance operation, enhancing productivity in various automation applications.
- 3Available with various mounting options, including through-hole and internal thread mounts, ensuring flexibility in installation.
- 4Equipped with self-adjusting pneumatic end-position cushioning, reducing noise and vibration, and improving overall system performance.
- 5Features a magnetic piston for contactless position sensing via proximity sensors, enhancing accuracy and reliability in automation systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10mm 400mm | Piston diameter | 40 mm |
Piston rod thread | M10x1.25 | Based on norm | ISO 21287 |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Clamping type with active direction | Both sides | Piston rod end | Internal thread |
Structural design | Piston Piston rod Cylinder barrel | Position sensing | For proximity sensor |
Symbol | 00991260 | Variants | Extended external thread piston rod Special thread on piston rod Extended piston rod Laser etched rating plate |
Operating pressure | 1.5bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 80°C | Impact energy in the end positions | 0.7J |
Theoretical force at 6 bar, retracting | 633N | Theoretical force at 6 bar, advancing | 754N |
Moving mass at 0?mm stroke | 173g | Additional moving mass per 10?mm stroke | 16g |
Basic weight with 0?mm stroke | 789g | Additional weight per 10?mm stroke | 45g |
Type of mounting | With internal thread With accessories | Pneumatic connection | G1/8 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Anodized |
Piston rod material | High-alloy steel | Material of cylinder barrel | Wrought aluminum alloy Smooth anodized |
Manufacturer ID | 548209 |
Specifications may be subject to change without notice
