Product Model

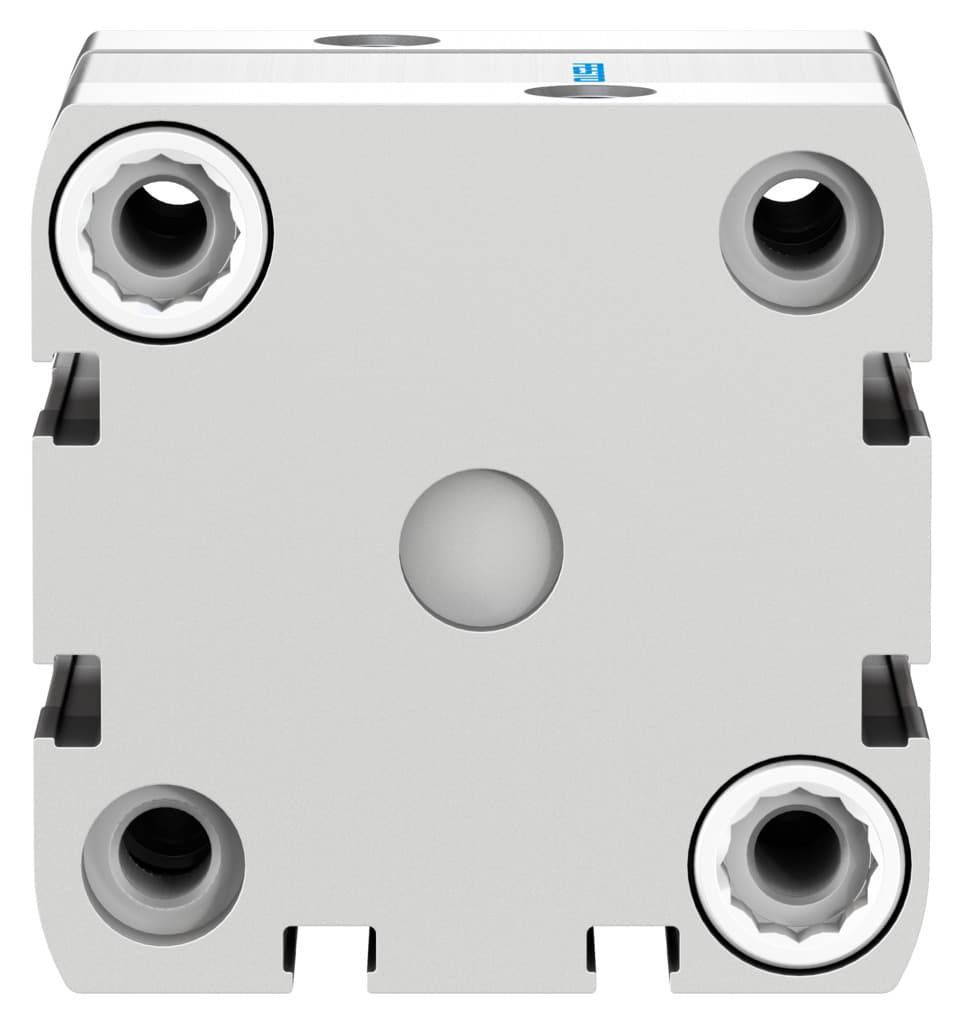

adn-50-10-a-pps-a
Selling Points
- 1Up to 50% smaller than standard cylinders for maximum productivity in confined spaces.
- 2Reduces noise and vibration, prolongs service life, and increases production efficiency.
- 3Meets international standards for high-performance pneumatic cylinders.
- 4Allows air to be applied for advancing and retracting the piston rod in a linear motion.
- 5Magnetic piston rods enable contactless position detection via proximity sensors.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10mm | Piston diameter | 50 mm |
Piston rod thread | M12x1.25 | Cushioning | Self-adjusting pneumatic end-position cushioning |
Mounting position | Any | Conforms to standard | ISO 21287 |
Piston rod end | External thread | Position sensing | For proximity sensor |
Symbol | 00992970 | Variants | Piston rod at one end |
Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 2.8J |
Cushioning length | 6mm | Theoretical force at 6 bar, retracting | 1057N |
Theoretical force at 6 bar, advancing | 1178N | Moving mass | 196g |
Product weight | 599g | Type of mounting | Optionally: With through-hole With internal thread With accessories |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Flange screws material | Steel | Cover material | Wrought aluminum alloy, anodized |
Seals material | TPE-U(PUR) | Piston rod material | High-alloy steel |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Manufacturer ID | 572691 |
Specifications may be subject to change without notice
