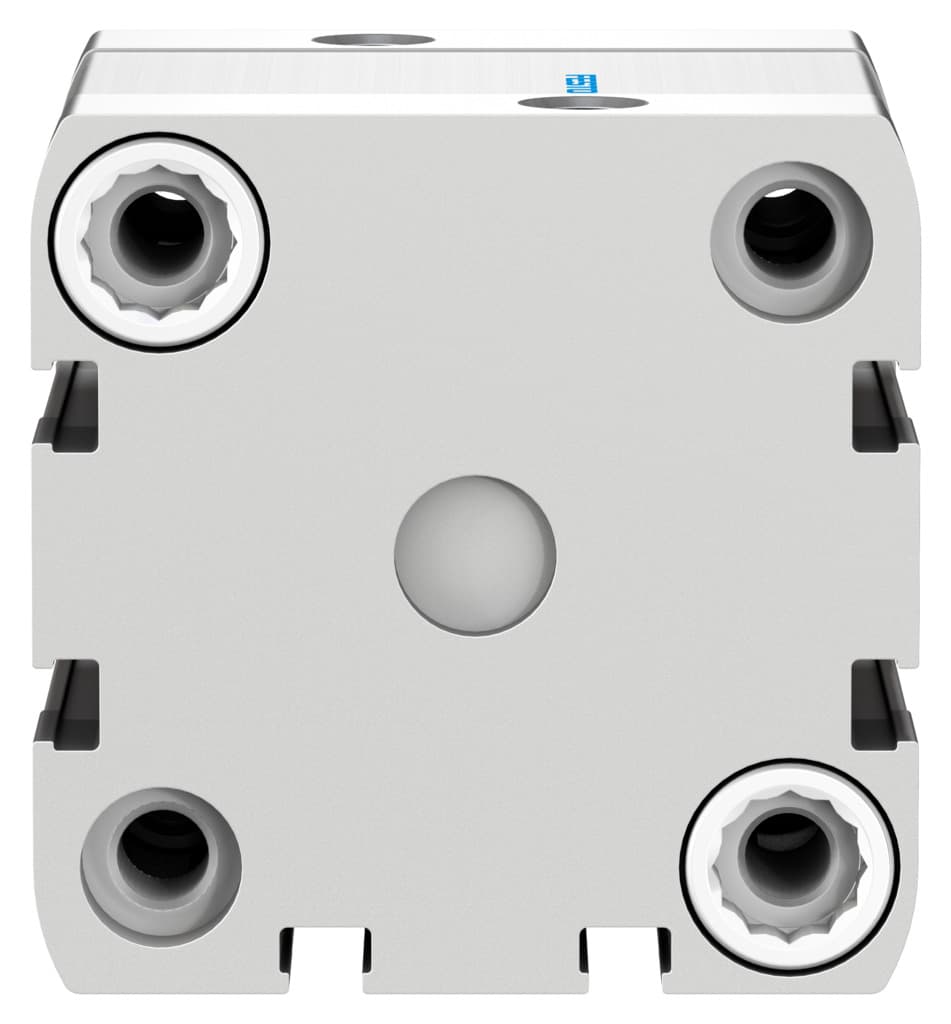

Festo ADN-50-20-I-PPS-A Pneumatic Cylinder - Double Acting, 50mm Bore, 20mm Stroke

Selling Points

1Compact Design: Up to 50% less installation space compared to standard ISO 15552 cylinders.
2Double Acting: Operates in both directions, providing balanced performance.
3Self-Adjusting Cushioning: PPS cushioning ensures smooth operation and energy absorption.
4High Precision: Suitable for proximity sensor integration and precise positioning.
5Robust Construction: Made from high-alloy steel piston rod and smooth-anodised aluminium alloy cylinder barrel.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	20mm	Piston diameter	50 mm
Piston rod thread	M10	Cushioning	Self-adjusting pneumatic end-position cushioning
Mounting position	Any	Conforms to standard	ISO 21287
Piston rod end	Internal thread	Position sensing	For proximity sensor
Symbol	00992970	Variants	Piston rod at one end
Operating pressure	1bar 10bar	Mode of operation	Double-acting
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Impact energy in the end positions	2.8J
Cushioning length	6mm	Theoretical force at 6 bar, retracting	1057N
Theoretical force at 6 bar, advancing	1178N	Moving mass	170g
Product weight	608g	Type of mounting	Optionally: With through-hole With internal thread With accessories
Pneumatic connection	G1/8	Note on materials	RoHS-compliant
Flange screws material	Steel	Cover material	Wrought aluminum alloy, anodized
Seals material	TPE-U(PUR)	Piston rod material	High-alloy steel
Material of cylinder barrel	Wrought aluminum alloy, smooth-anodized	Manufacturer ID	572684

Specifications may be subject to change without notice
