Product Model

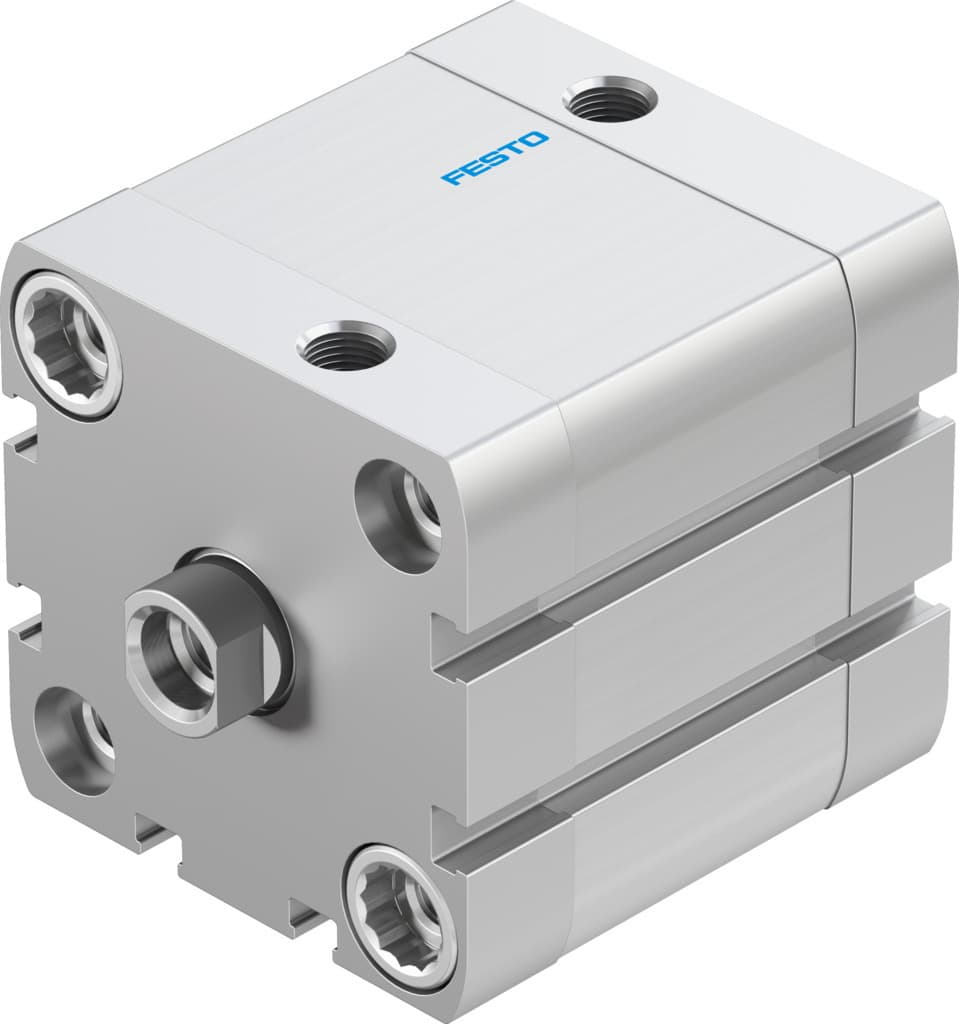

adn-50-25-i-pps-a
Selling Points
- 1Compact Design: The ADN-50-25-I-PPS-A is a compact ISO 21287 cylinder, perfect for space-constrained applications.
- 2Self-Adjusting Cushioning: Equipped with self-adjusting pneumatic end-position cushioning for smooth operation and reduced wear.
- 3High-Performance Piston: 50mm piston diameter ensures high force output and precise control.
- 4Versatile Mounting Options: Available with through-hole, internal thread, or accessories for flexible mounting.
- 5Durable Construction: Made from high-alloy steel piston rod and smooth-anodized aluminum alloy barrel for long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 25mm | Piston diameter | 50 mm |
Piston rod thread | M10 | Cushioning | Self-adjusting pneumatic end-position cushioning |
Mounting position | Any | Conforms to standard | ISO 21287 |
Piston rod end | Internal thread | Position sensing | For proximity sensor |
Symbol | 00992970 | Variants | Piston rod at one end |
Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 2.8J |
Cushioning length | 6mm | Theoretical force at 6 bar, retracting | 1057N |
Theoretical force at 6 bar, advancing | 1178N | Moving mass | 178g |
Product weight | 633g | Type of mounting | Optionally: With through-hole With internal thread With accessories |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Flange screws material | Steel | Cover material | Wrought aluminum alloy, anodized |
Seals material | TPE-U(PUR) | Piston rod material | High-alloy steel |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Manufacturer ID | 572685 |
Specifications may be subject to change without notice
