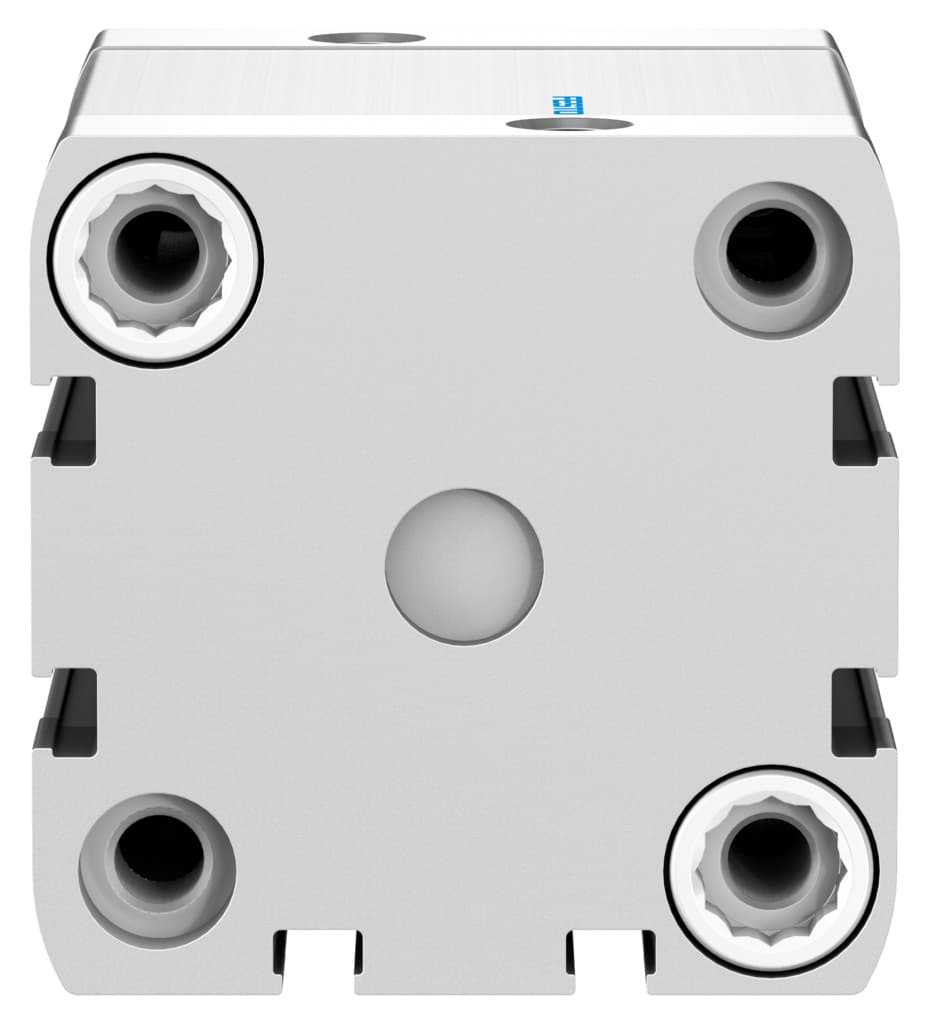

Festo ADN-50-40-A-PPS-A Compact Cylinder - High-Performance Pneumatic Solution

Selling Points

1Robust Construction: Built with high-alloy steel piston rod and smooth-anodised wrought aluminium alloy cylinder barrel.
2Self-Adjusting Cushioning: Ensures smooth end-position control with self-adjusting pneumatic end-position cushioning.
3Double-Acting Operation: Designed for efficient operation in both advance and return strokes.
4Compliant with Standards: Meets ISO 21287 standards and is RoHS compliant.
5Versatile Mounting Options: Can be mounted with through-hole or via female thread, offering flexibility in installation.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	40mm	Piston diameter	50 mm
Piston rod thread	M12x1.25	Cushioning	Self-adjusting pneumatic end-position cushioning
Mounting position	Any	Conforms to standard	ISO 21287
Piston rod end	External thread	Position sensing	For proximity sensor
Symbol	00992970	Variants	Piston rod at one end
Operating pressure	1bar 10bar	Mode of operation	Double-acting
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Impact energy in the end positions	2.8J
Cushioning length	6mm	Theoretical force at 6 bar, retracting	1057N
Theoretical force at 6 bar, advancing	1178N	Moving mass	244g
Product weight	753g	Type of mounting	Optionally: With through-hole With internal thread With accessories
Pneumatic connection	G1/8	Note on materials	RoHS-compliant
Flange screws material	Steel	Cover material	Wrought aluminum alloy, anodized
Seals material	TPE-U(PUR)	Piston rod material	High-alloy steel
Material of cylinder barrel	Wrought aluminum alloy, smooth-anodized	Manufacturer ID	572696

Specifications may be subject to change without notice
