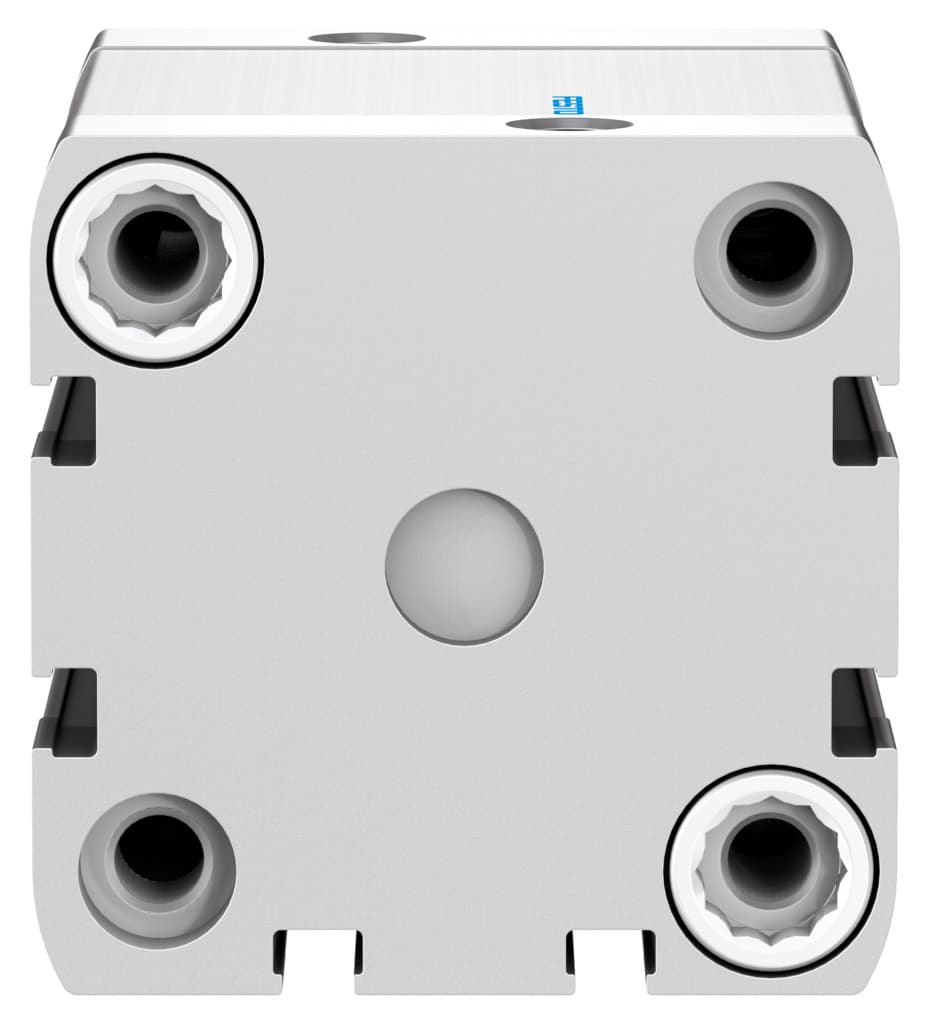

Festo ADN-50-40-I-PPS-A Compact Cylinder - Reliable Pneumatic Solution

Selling Points

1The Festo ADN-50-40-I-PPS-A features a compact design, perfect for space-constrained applications.
2This cylinder operates double-acting, allowing for both extension and retraction with equal force.
3Built with high-quality materials, it ensures reliable performance under 10bar operating pressure.
4The cylinder is RoHS compliant, meeting environmental standards for hazardous substances.
5Suitable for a wide range of industrial applications, including manufacturing and automation systems.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	40mm	Piston diameter	50 mm
Piston rod thread	M10	Cushioning	Self-adjusting pneumatic end-position cushioning
Mounting position	Any	Conforms to standard	ISO 21287
Piston rod end	Internal thread	Position sensing	For proximity sensor
Symbol	00992970	Variants	Piston rod at one end
Operating pressure	1bar 10bar	Mode of operation	Double-acting
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Impact energy in the end positions	2.8J
Cushioning length	6mm	Theoretical force at 6 bar, retracting	1057N
Theoretical force at 6 bar, advancing	1178N	Moving mass	202g
Product weight	710g	Type of mounting	Optionally: With through-hole With internal thread With accessories
Pneumatic connection	G1/8	Note on materials	RoHS-compliant
Flange screws material	Steel	Cover material	Wrought aluminum alloy, anodized
Seals material	TPE-U(PUR)	Piston rod material	High-alloy steel
Material of cylinder barrel	Wrought aluminum alloy, smooth-anodized	Manufacturer ID	572687

Specifications may be subject to change without notice
