Product Model

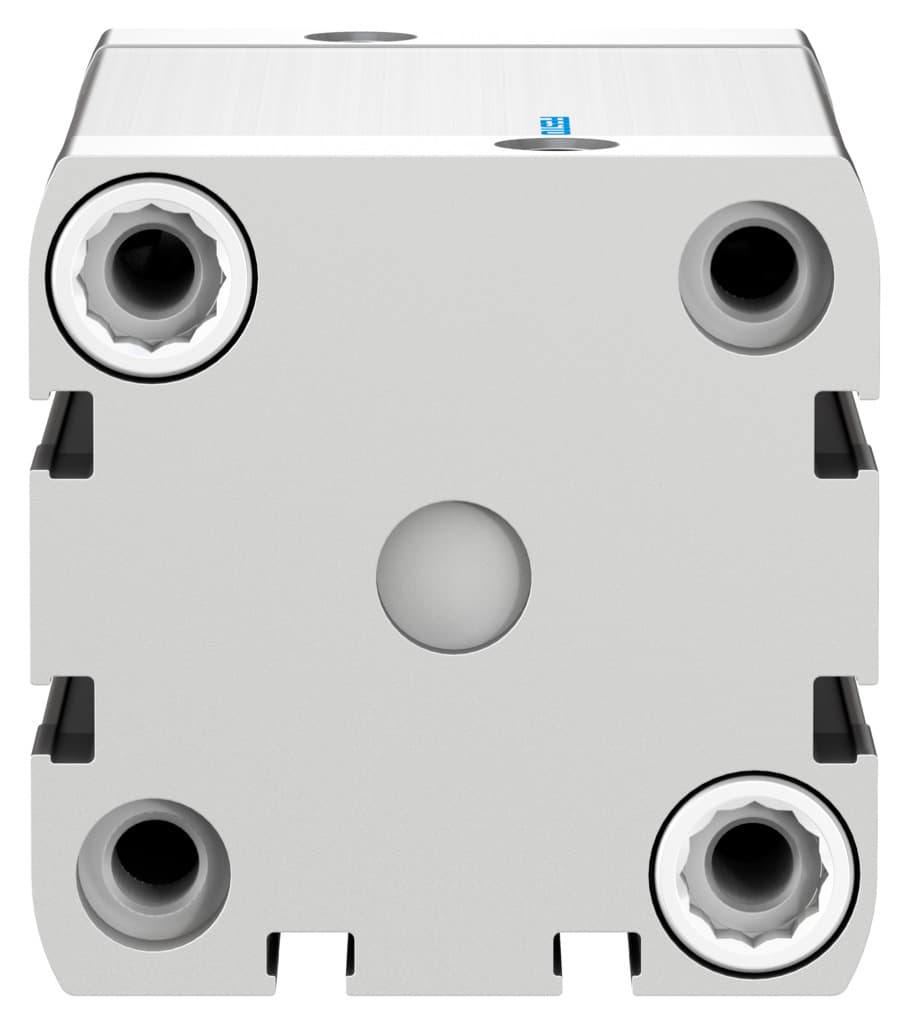

adn-50-70-a-p-a
Selling Points
- 1High Precision & Durability: Built with smooth-anodised wrought aluminium alloy and high-alloy steel piston rod for long-lasting operation.
- 2Compact Design: Ideal for space-constrained environments with a stroke of 70mm and piston diameter of 50mm.
- 3Elastic Cushioning: Equipped with elastic cushioning rings/plates at both ends for smooth operation and reduced wear.
- 4Versatile Mounting Options: Can be mounted with through-hole, via female thread, or with accessories for flexible installation.
- 5Compliant with Industry Standards: Conforms to ISO 21287 and VDMA24364-B1/B2-L standards for reliability and safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 70mm | Piston diameter | 50 mm |
Piston rod thread | M12x1.25 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Conforms to standard | ISO 21287 |
Piston rod end | External thread | Position sensing | For proximity sensor |
Symbol | 00991217 | Variants | Piston rod at one end |
Operating pressure | 0.6bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 1J |
Theoretical force at 6 bar, retracting | 1057N | Theoretical force at 6 bar, advancing | 1178N |
Moving mass | 277g | Product weight | 890g |
Type of mounting | Optionally: With through-hole With internal thread With accessories | Pneumatic connection | G1/8 |
Note on materials | RoHS-compliant | Flange screws material | Steel |
Cover material | Wrought aluminum alloy, anodized | Seals material | TPE-U(PUR) |
Piston rod material | High-alloy steel | Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
Manufacturer ID | 572851 |
Specifications may be subject to change without notice
