Product Model
adn-63-25-a-p-a
Selling Points

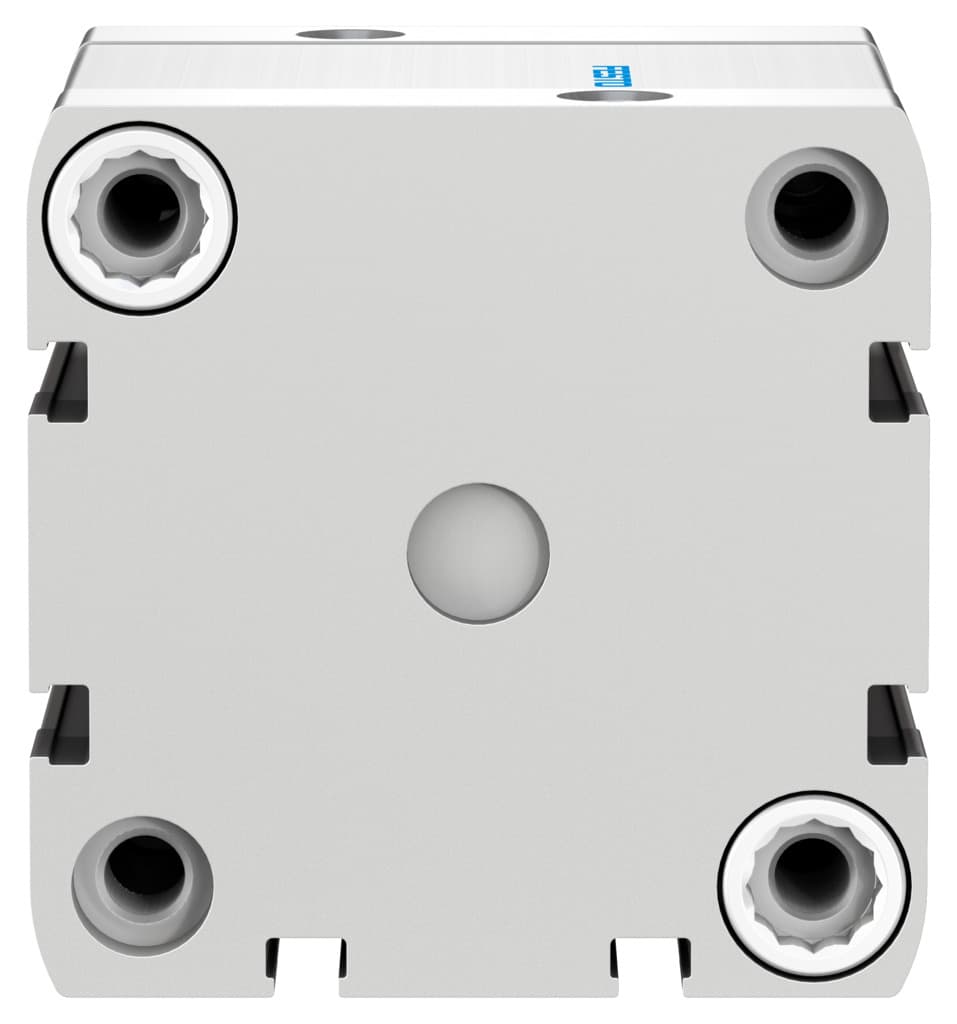

- 1The Festo ADN-63-25-A-P-A compact pneumatic cylinder offers a stroke length of 25 mm and a piston diameter of 63 mm, making it ideal for applications requiring precise movement.
- 2This cylinder features elastic cushioning rings/plates at both ends for smooth operation and reduced wear, ensuring reliable performance in various industrial settings.
- 3With a piston rod thread of M12x1.25, the ADN-63-25-A-P-A provides a secure and efficient connection, enhancing the overall efficiency of your automation system.
- 4The cylinder operates within a pressure range of 0.6 to 10 bar, making it versatile for various industrial applications, including double-acting operations.
- 5The Festo ADN-63-25-A-P-A is designed to meet ISO 21287 standards and is compatible with proximity switches for precise position detection, ensuring accurate control in your automation processes.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 25mm | Piston diameter | 63 mm |
Piston rod thread | M12x1.25 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Conforms to standard | ISO 21287 |
Piston rod end | External thread | Position sensing | For proximity sensor |
Symbol | 00991217 | Variants | Piston rod at one end |
Operating pressure | 0.6bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 1.3J |
Theoretical force at 6 bar, retracting | 1750N | Theoretical force at 6 bar, advancing | 1870N |
Moving mass | 262g | Product weight | 904g |
Type of mounting | Optionally: With through-hole With internal thread With accessories | Pneumatic connection | G1/8 |
Note on materials | RoHS-compliant | Flange screws material | Steel |
Cover material | Wrought aluminum alloy, anodized | Seals material | TPE-U(PUR) |
Piston rod material | High-alloy steel | Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
Manufacturer ID | 536335 |
Specifications may be subject to change without notice
