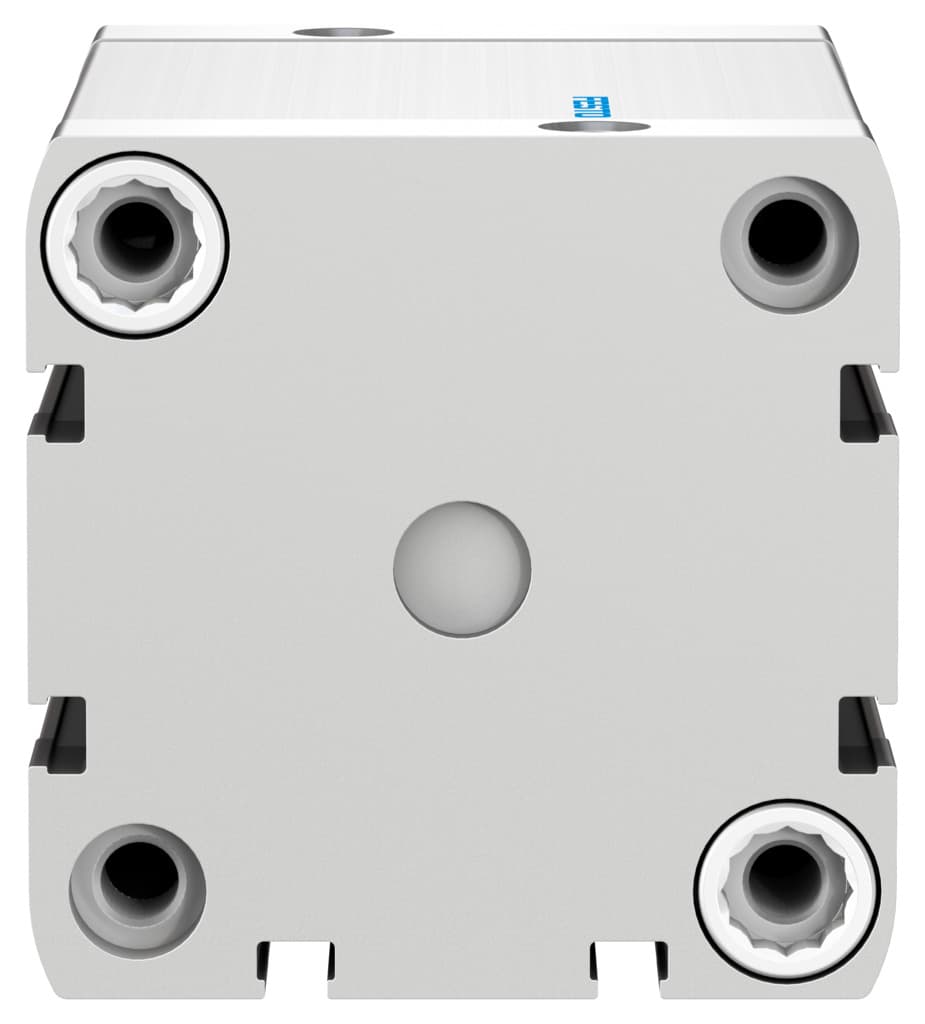

Compact Double-Acting Pneumatic Cylinder ADN-63-60-I-PPS-A by Festo

Selling Points

1Compact Design: Ideal for space-saving applications with a stroke length of 60 mm and piston diameter of 63 mm.
2Self-Adjusting Cushioning: PPS cushioning ensures smooth operation and reduces wear on the cylinder.
3Built-in Magnet: Enhances position sensing via proximity sensor for precise control.
4Versatile Mounting: Can be mounted via through-hole, internal thread, or accessories for flexible installation.
5Compliant with Standards: Meets ISO 21287 and ISO 8573-1:2010 standards for reliable performance in various environments.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	60mm	Piston diameter	63 mm
Piston rod thread	M10	Cushioning	Self-adjusting pneumatic end-position cushioning
Mounting position	Any	Conforms to standard	ISO 21287
Piston rod end	Internal thread	Position sensing	For proximity sensor
Symbol	00992970	Variants	Piston rod at one end
Operating pressure	1bar 10bar	Mode of operation	Double-acting
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Impact energy in the end positions	4.8J
Cushioning length	7mm	Theoretical force at 6 bar, retracting	1750N
Theoretical force at 6 bar, advancing	1870N	Moving mass	294g
Product weight	1088g	Type of mounting	Optionally: With through-hole With internal thread With accessories
Pneumatic connection	G1/8	Note on materials	RoHS-compliant
Flange screws material	Steel	Cover material	Wrought aluminum alloy, anodized
Seals material	TPE-U(PUR)	Piston rod material	High-alloy steel
Material of cylinder barrel	Wrought aluminum alloy, smooth-anodized	Manufacturer ID	572707

Specifications may be subject to change without notice
