Product Model
adn-80- -
Selling Points

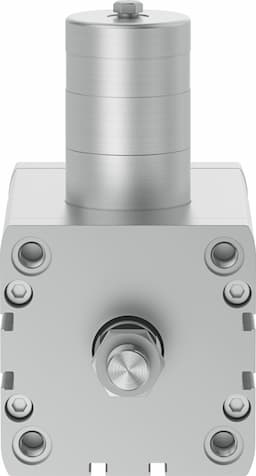

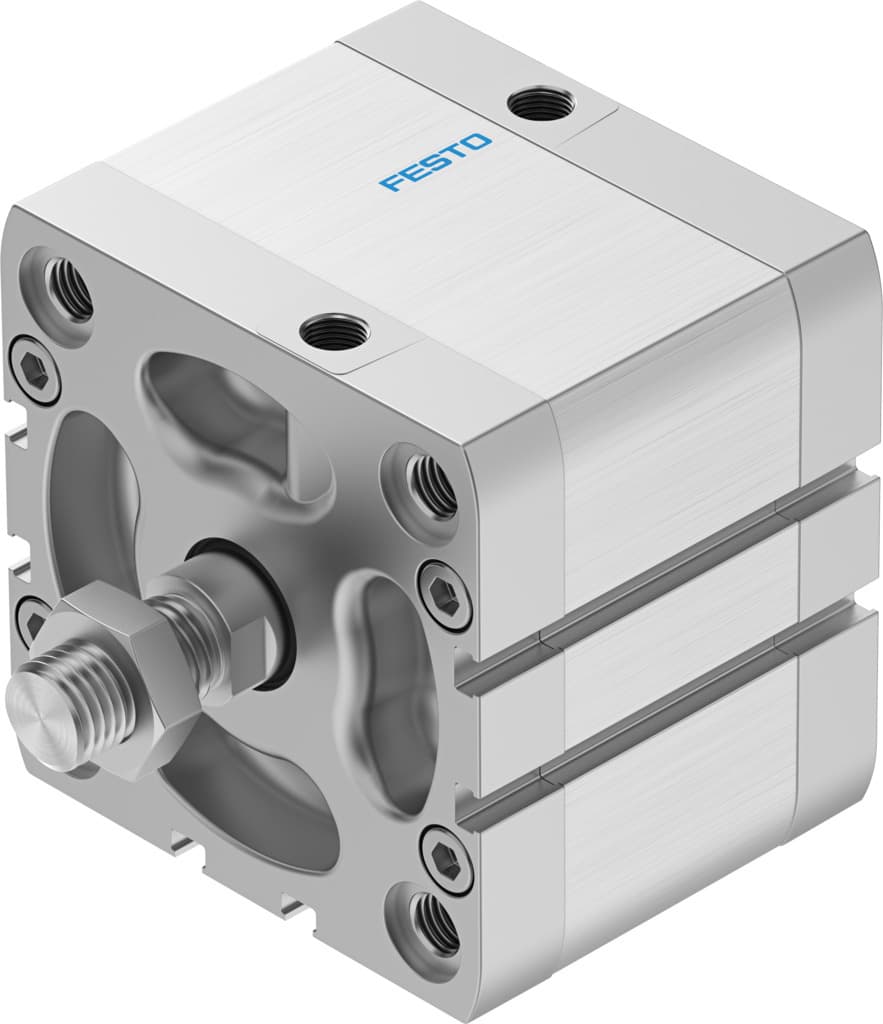

- 1The Festo ADN-80-25-I-P-A pneumatic cylinder is designed to minimize installation space, making it perfect for applications where space is limited.
- 2This cylinder operates with compressed air as per ISO8573-1:2010, allowing for efficient and reliable operation in both directions.
- 3The cylinder features a built-in magnet for position sensing, enhancing precision and control in your applications.
- 4Equipped with elastic cushioning at both ends, this cylinder ensures smooth operation and reduces wear and tear on the components.
- 5The ADN-80-25-I-P-A can be mounted via through-hole or internal threaded mounts, providing flexibility in installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 1mm 500mm | Piston diameter | 80 mm |
Cushioning | Elastic cushioning rings/pads at both ends Self-adjusting pneumatic end-position cushioning | Mounting position | Any |
Conforms to standard | ISO 21287 | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Variants | EX protection approval (ATEX) Metals with copper, zinc or nickel by mass as main constituent are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils. Improved running performance Extended external thread piston rod Special thread on piston rod Extended piston rod With anti-twist protection High corrosion protection Dust protection Uniform, slow movement Low friction Through piston rod Through, hollow piston rod Heat-resistant seals max. 120°C Laser etched rating plate Temperature range -40 to 80°C Piston rod at one end |
Operating pressure | 0.6bar 10bar | Mode of operation | Double-acting |
CE marking (see declaration of conformity) | as per EU explosion protection directive (ATEX) | UKCA marking (see declaration of conformity) | acc. to UK EX instructions |
Explosion protection certification outside the EU | EPL Db (GB) EPL Gb (GB) | Explosion prevention and protection | Zone 1 (ATEX) Zone 1 (UKEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 21 (UKEX) Zone 22 (ATEX) |
ATEX category gas | II 2G | ATEX category for dust | II 2D |
Type of ignition protection for gas | Ex h IIC T4 Gb | Type of (ignition) protection for dust | Ex h IIIC T120°C Db |
Explosive ambient temperature | -20°C <= Ta <= +60°C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress 2 - Moderate corrosion stress 3 - High corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L VDMA24364 zone III | Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils |
Ambient temperature | -40°C 120°C | Theoretical force at 6 bar, retracting | 2827N |
Theoretical force at 6 bar, advancing | 2827N 3016N | Weight surcharge per 10 mm piston rod extension | 25g |
Weight surcharge per 10 mm piston rod thread extension | 16g | Type of mounting | Optionally: With through-hole With internal thread With accessories |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Flange screws material | Steel | Cover material | Die-cast aluminum, coated Wrought aluminum alloy, anodized |
Piston rod material | High-alloy steel | Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
Manufacturer ID | 536351 |
Specifications may be subject to change without notice
