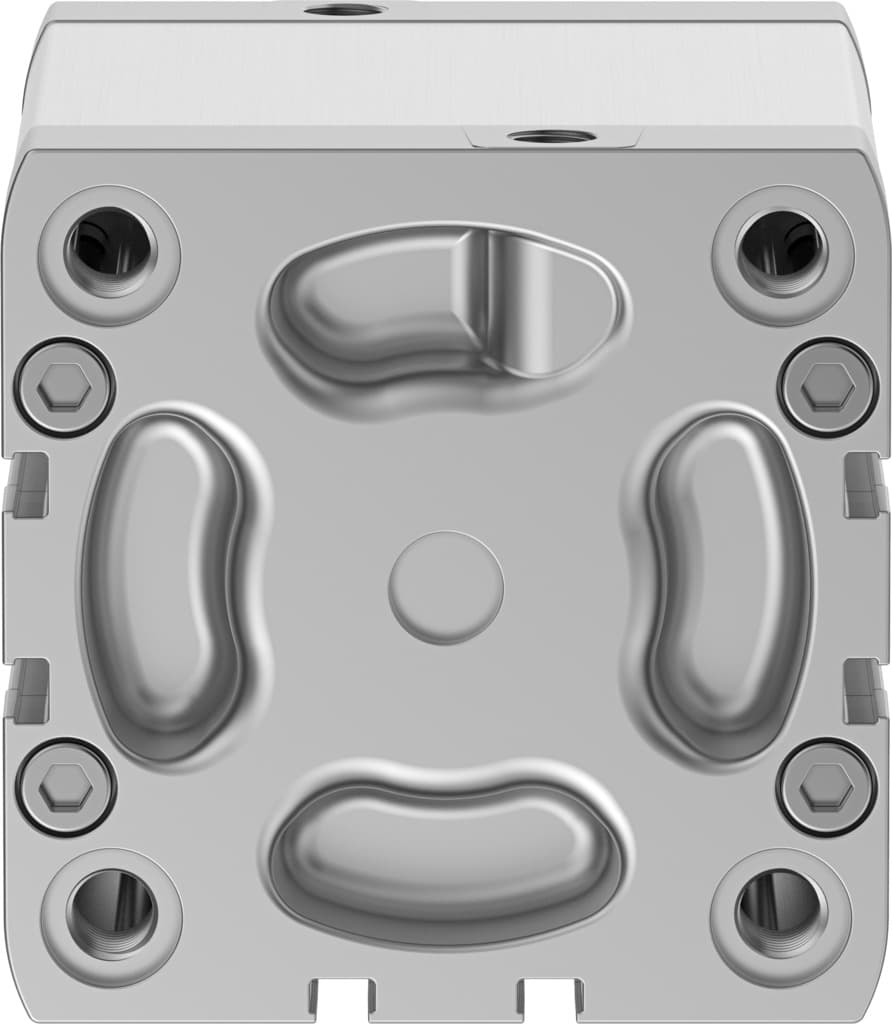

Festo ADN-80-60-A-PPS-A Compact Pneumatic Cylinder - High Efficiency and Reliability

Selling Points

1Designed for double-acting operation with compressed air, ensuring smooth and efficient movement.
2Built with high-alloy steel piston rod and smooth-anodized aluminum alloy cylinder barrel for durability.
3Equipped with self-adjusting pneumatic end-position cushioning for optimal performance and longevity.
4Meets the high standards of ISO 21287, ensuring quality and performance in industrial applications.
5Can be mounted with through-hole or internal thread options, providing flexibility in installation.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	60mm	Piston diameter	80 mm
Piston rod thread	M16x1.5	Cushioning	Self-adjusting pneumatic end-position cushioning
Mounting position	Any	Conforms to standard	ISO 21287
Piston rod end	External thread	Position sensing	For proximity sensor
Symbol	00992970	Variants	Piston rod at one end
Operating pressure	1bar 10bar	Mode of operation	Double-acting
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Impact energy in the end positions	8J
Cushioning length	7.5mm	Theoretical force at 6 bar, retracting	2827N
Theoretical force at 6 bar, advancing	3016N	Moving mass	603g
Product weight	1640g	Type of mounting	Optionally: With through-hole With internal thread With accessories
Pneumatic connection	G1/8	Note on materials	RoHS-compliant
Flange screws material	Steel	Cover material	Die-cast aluminum, coated
Seals material	TPE-U(PUR)	Piston rod material	High-alloy steel
Material of cylinder barrel	Wrought aluminum alloy, smooth-anodized	Manufacturer ID	572734

Specifications may be subject to change without notice
