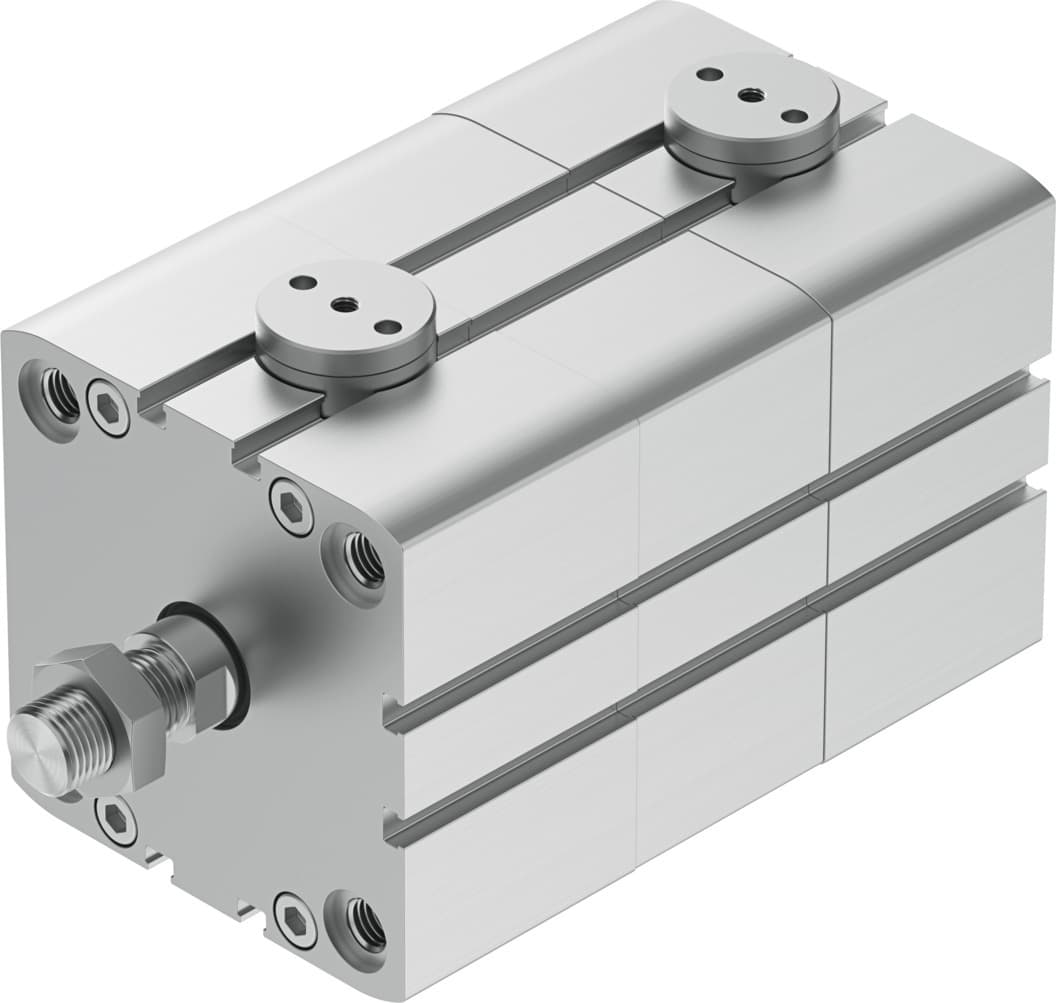

Product Model
adn-80- -el-
Selling Points
- 1The Festo ADN-80- -EL- features a compact design, ideal for space-constrained applications, ensuring efficient use of space without compromising performance.
- 2Equipped with elastic cushioning rings/pads at both ends, this cylinder provides smooth operation and reduces noise and vibration, enhancing overall system reliability.
- 3The cylinder can be mounted in any position, conforming to standard ISO 21287, offering flexibility in installation and integration with other components.
- 4Designed to operate under pressures ranging from 0.06 MPa to 1 MPa (0.6 bar to 10 bar), making it suitable for a wide range of industrial applications requiring precise control.
- 5With a corrosion resistance class (CRC) of 2, the Festo ADN-80- -EL- is moderately resistant to corrosion, ensuring durability in various environmental conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10mm 500mm | Piston diameter | 80 mm |
Piston rod thread | M16x1.5 | Based on norm | ISO 21287 |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Piston rod end | Internal thread | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Variants | With end-position locking at both ends With rear end-position locking With front end-position locking Extended external thread piston rod Special thread on piston rod Extended piston rod Laser etched rating plate |
Operating pressure | 1.5bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 1.8J |
Theoretical force at 6 bar, retracting | 2827N | Theoretical force at 6 bar, advancing | 3016N |
Additional moving mass per 10?mm stroke | 25g | Type of mounting | With internal thread With accessories |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy Anodized | Piston rod material | High-alloy steel |
Material of cylinder barrel | Wrought aluminum alloy Smooth anodized | Manufacturer ID | 548220 |
Specifications may be subject to change without notice
