Product Model

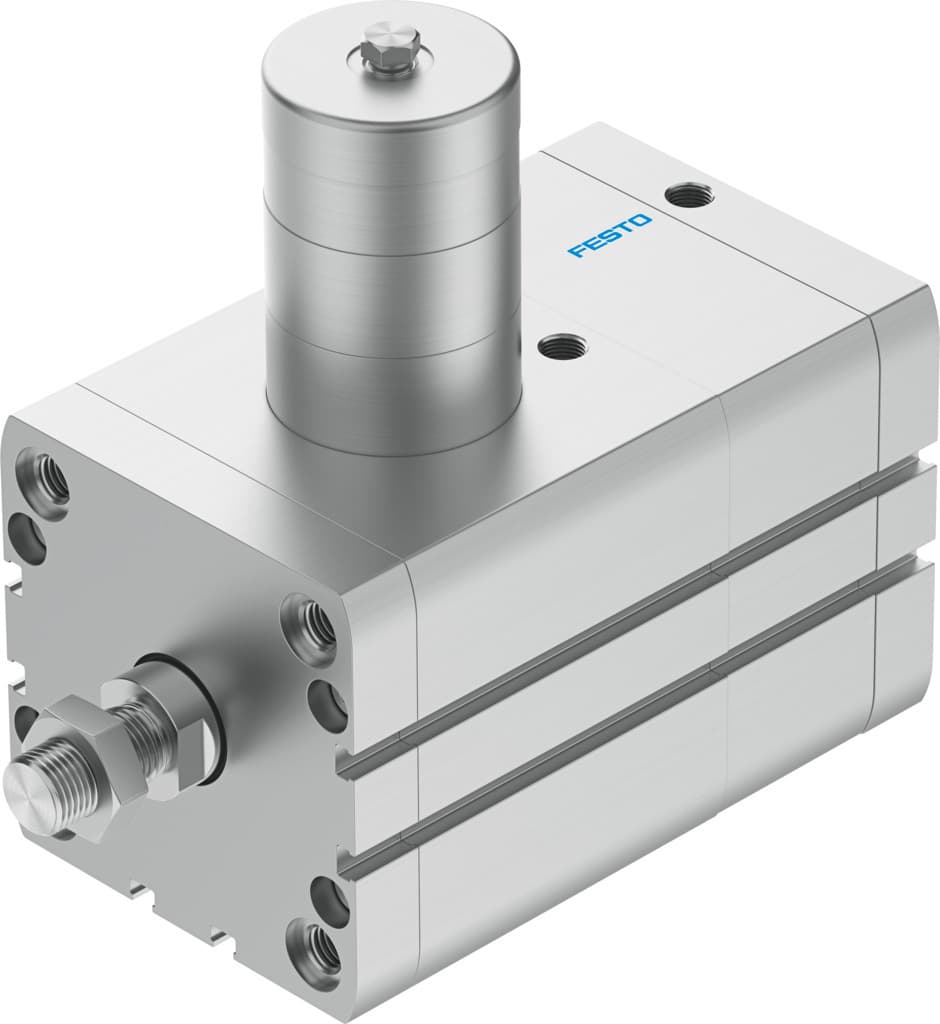

adn-80- -kp-
Selling Points
- 1The Festo ADN-80- -KP- features a compact design, ideal for space-constrained industrial environments, ensuring efficient use of space and streamlined operations.
- 2Constructed from high-alloy steel for the piston rod and wrought aluminum alloy for the cylinder barrel, this cylinder offers superior durability and corrosion resistance.
- 3Capable of double-acting operation, the ADN-80- -KP- can move in both directions, enhancing versatility and flexibility in various industrial applications.
- 4Conforms to ISO 21287 standards, ensuring high standards of quality and performance in pneumatic systems, making it a reliable choice for industrial automation.
- 5Offers flexible mounting options, including through-hole and internal thread configurations, allowing for easy integration into various mechanical systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10mm 500mm | Piston diameter | 80 mm |
Piston rod thread | M16x1.5 | Based on norm | ISO 21287 |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Clamping type with active direction | Both sides | Piston rod end | Internal thread |
Structural design | Piston Piston rod Cylinder barrel | Position sensing | For proximity sensor |
Symbol | 00991260 | Variants | Extended external thread piston rod Special thread on piston rod Extended piston rod Laser etched rating plate |
Operating pressure | 1.5bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 80°C | Impact energy in the end positions | 1.8J |
Theoretical force at 6 bar, retracting | 2721N | Theoretical force at 6 bar, advancing | 3016N |
Moving mass at 0?mm stroke | 755g | Additional moving mass per 10?mm stroke | 39g |
Basic weight with 0?mm stroke | 3973g | Additional weight per 10?mm stroke | 93g |
Type of mounting | With internal thread With accessories | Pneumatic connection | G1/8 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Anodized |
Piston rod material | High-alloy steel | Material of cylinder barrel | Wrought aluminum alloy Smooth anodized |
Manufacturer ID | 548212 |
Specifications may be subject to change without notice
