Product Model

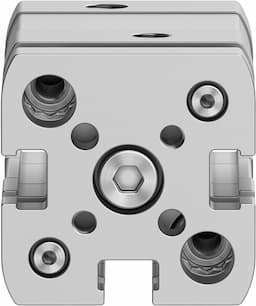

adngf-16- -
Selling Points
- 1The ADNGF-16 compact cylinder features a corrosion resistance class of 2, ensuring it can withstand moderate corrosion stress in various industrial environments.
- 2Equipped with elastic cushioning rings/plates at both ends, this cylinder provides smooth operation and reduces wear and tear, ensuring longevity.
- 3The ADNGF-16 can be mounted in any position, offering flexibility in installation and integration into complex systems.
- 4Designed for double-acting operations, this cylinder allows for both forward and return strokes, enhancing its versatility in various applications.
- 5Compatible with compressed air to ISO 8573-1:2010 [7:4:4], this cylinder operates efficiently and reliably in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 1mm 200mm | Piston diameter | 16 mm |
Based on norm | ISO 21287 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Variants | EX protection approval (ATEX) Through piston rod Heat-resistant seals max. 120°C Laser etched rating plate |
Protection against torsion/guide | Guide rod with yoke | Operating pressure | 1.5bar 10bar |
Mode of operation | Double-acting | CE marking (see declaration of conformity) | as per EU explosion protection directive (ATEX) |
UKCA marking (see declaration of conformity) | acc. to UK EX instructions | Explosion protection certification outside the EU | EPL Db (GB) EPL Gb (GB) |
Explosion prevention and protection | Zone 1 (ATEX) Zone 1 (UKEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 21 (UKEX) Zone 22 (ATEX) | ATEX category gas | II 2G |
ATEX category for dust | II 2D | Type of ignition protection for gas | Ex h IIC T4 Gb |
Type of (ignition) protection for dust | Ex h IIIC T120°C Db | Explosive ambient temperature | -20°C <= Ta <= +60°C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 120°C | Impact energy in the end positions | 0.15J |
Theoretical force at 6 bar, retracting | 90N | Theoretical force at 6 bar, advancing | 121N |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Flange screws material | Steel | Cover material | Wrought aluminum alloy, anodized |
Seals material | TPE-U(PUR) | End plate material | Wrought aluminum alloy, anodized |
Piston rod material | High-alloy steel | Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
Manufacturer ID | 537124 |
Specifications may be subject to change without notice
