Product Model
adngf-25- -
Selling Points

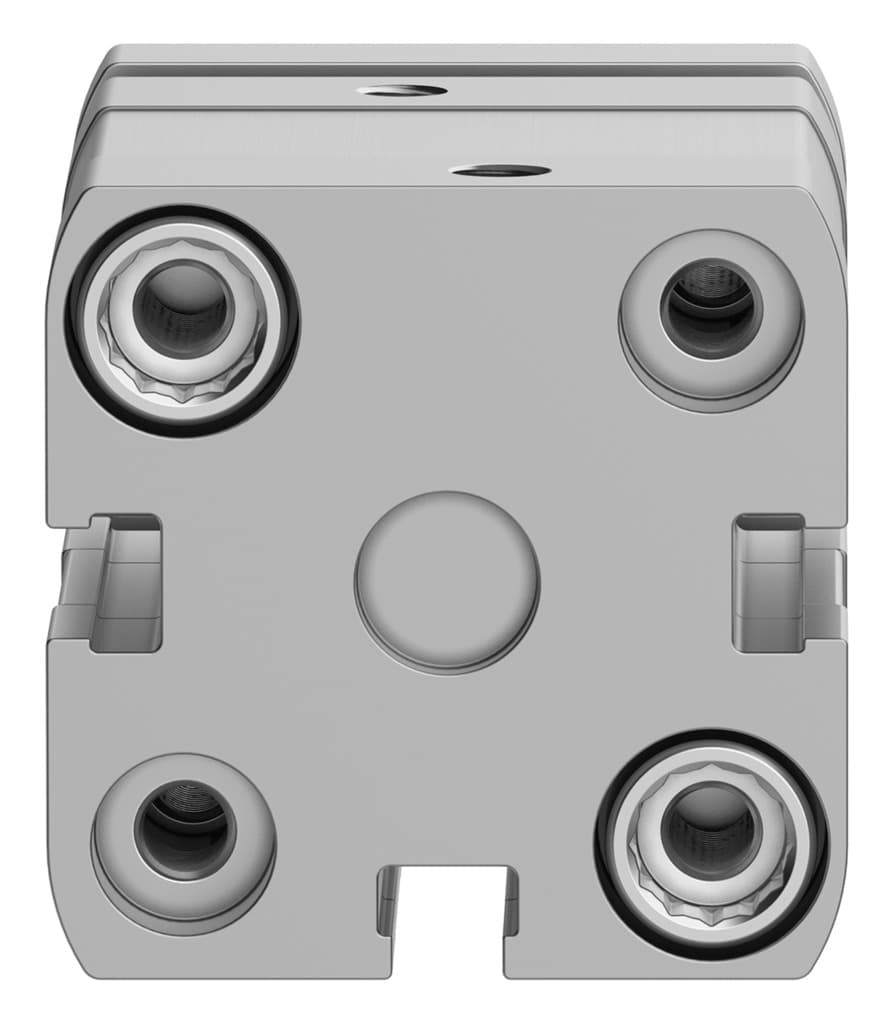

- 1The ADNGF-25-50-P-A compact air cylinder from Festo is designed for high precision and durability, ensuring reliable performance in various industrial applications.
- 2Equipped with elastic cushioning rings/plates at both ends, this cylinder provides smooth operation and reduces wear and tear.
- 3With a stroke length of 50 mm and a piston diameter of 25 mm, this compact air cylinder is ideal for space-constrained environments.
- 4The ADNGF series offers optional mounting positions, allowing for flexibility in installation and integration with other components.
- 5Meets ISO 21287 standards and is compatible with compressed air as per ISO 8573-1:2010, ensuring compliance with industry norms.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 3mm 200mm | Piston diameter | 25 mm |
Based on norm | ISO 21287 | Cushioning | Elastic cushioning rings/pads at both ends Self-adjusting pneumatic end-position cushioning |
Mounting position | Any | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Variants | EX protection approval (ATEX) Through piston rod Heat-resistant seals max. 120°C Laser etched rating plate |
Protection against torsion/guide | Guide rod with yoke | Operating pressure | 1bar 10bar |
Mode of operation | Double-acting | CE marking (see declaration of conformity) | as per EU explosion protection directive (ATEX) |
UKCA marking (see declaration of conformity) | acc. to UK EX instructions | Explosion protection certification outside the EU | EPL Db (GB) EPL Gb (GB) |
Explosion prevention and protection | Zone 1 (ATEX) Zone 1 (UKEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 21 (UKEX) Zone 22 (ATEX) | ATEX category gas | II 2G |
ATEX category for dust | II 2D | Type of ignition protection for gas | Ex h IIC T4 Gb |
Type of (ignition) protection for dust | Ex h IIIC T120°C Db | Explosive ambient temperature | -20°C <= Ta <= +60°C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 120°C | Impact energy in the end positions | 0.3J |
Theoretical force at 6 bar, retracting | 247N | Theoretical force at 6 bar, advancing | 295N |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Flange screws material | Steel | Cover material | Wrought aluminum alloy, anodized |
Seals material | TPE-U(PUR) | End plate material | Wrought aluminum alloy, anodized |
Piston rod material | High-alloy steel | Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
Manufacturer ID | 537126 |
Specifications may be subject to change without notice
