Product Model
adngf-25-15-p-a
Selling Points

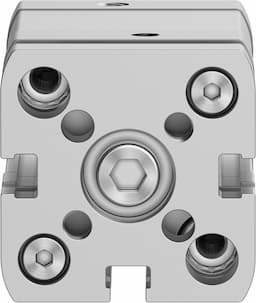

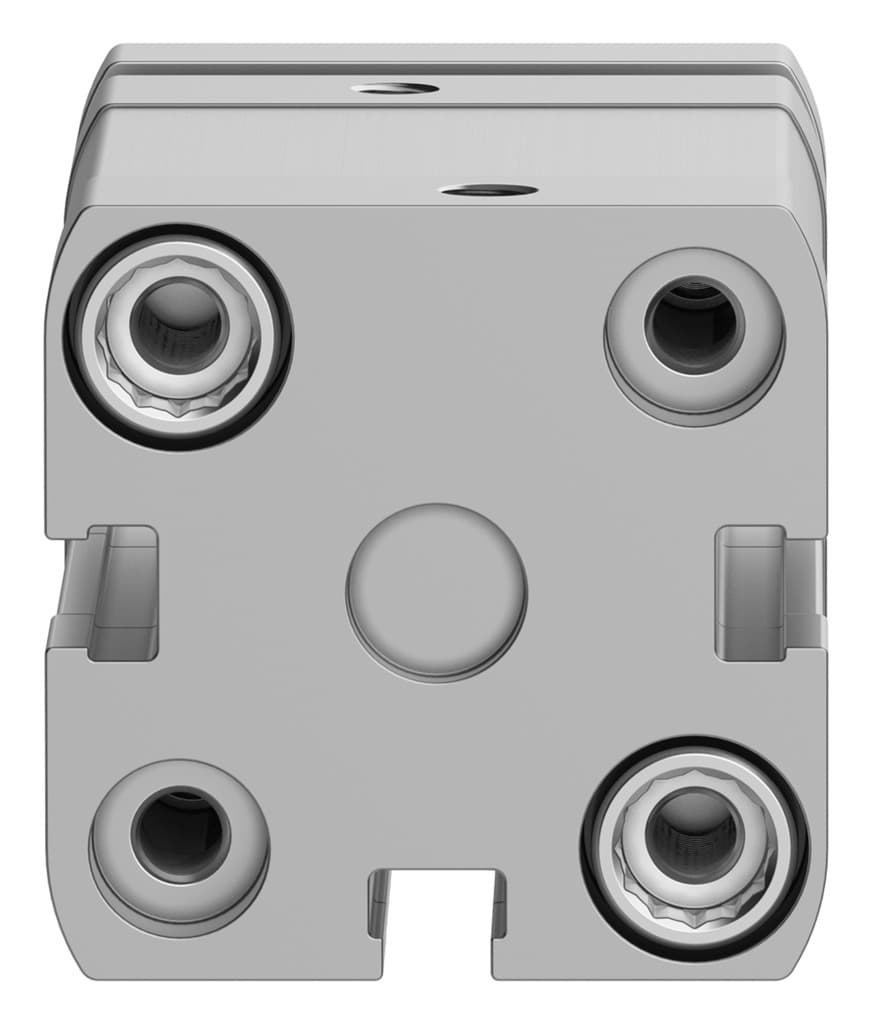

- 1The Festo ADNGF-25-15-P-A compact cylinder offers a stroke of 15 mm and a piston diameter of 25 mm, ensuring precise movement and control in various applications.
- 2Equipped with elastic cushioning rings/plates at both ends, this cylinder provides smooth operation and reduces wear and tear, extending its lifespan.
- 3The ADNGF-25-15-P-A features a proximity switch for position detection, ensuring accurate positioning and reliable operation in automation systems.
- 4The guide rod with yoke provides protection against torque and ensures stable operation, making it suitable for demanding industrial applications.
- 5Designed to operate within a pressure range of 0.1 MPa to 1 MPa, this compact cylinder is versatile and can be used in a variety of pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 15mm | Piston diameter | 25 mm |
Based on norm | ISO 21287 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Protection against torsion/guide | Guide rod with yoke |
Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.3J |
Theoretical force at 6 bar, retracting | 247N | Theoretical force at 6 bar, advancing | 295N |
Moving mass | 89g | Product weight | 248g |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Flange screws material | Steel | Cover material | Wrought aluminum alloy, anodized |
Seals material | TPE-U(PUR) | End plate material | Wrought aluminum alloy, anodized |
Piston rod material | High-alloy steel | Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
Manufacturer ID | 554231 |
Specifications may be subject to change without notice
