Product Model

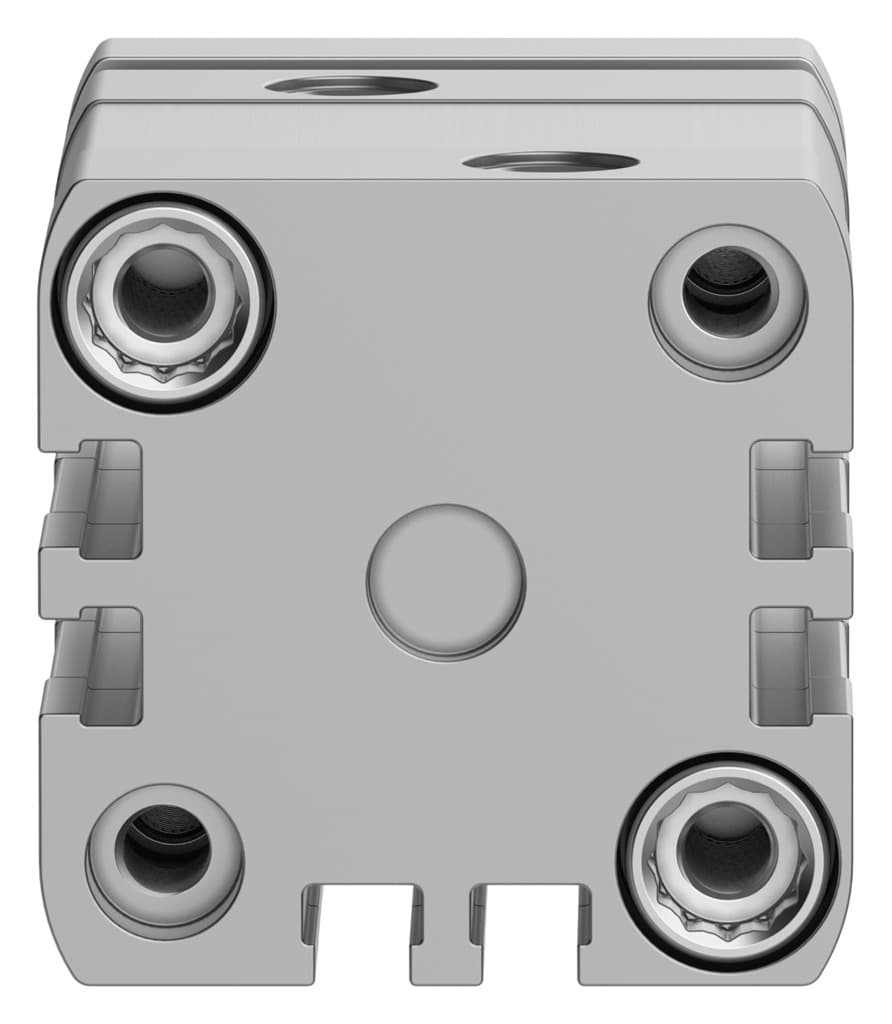

adngf-32-10-p-a
Selling Points
- 1The ADNGF-32-10-P-A features a compact design with a stroke of 10 mm and a piston diameter of 32 mm, making it perfect for space-constrained applications.
- 2This cylinder operates double-acting, allowing for both extension and retraction strokes, enhancing versatility in various pneumatic systems.
- 3Equipped with elastic cushioning rings/plates at both ends, the ADNGF-32-10-P-A ensures smooth operation and reduces wear on the cylinder.
- 4Designed to operate with compressed air to ISO 8573-1:2010 [7:4:4], this cylinder is suitable for a wide range of pneumatic applications.
- 5Made from high-quality materials including anodized wrought aluminum alloy for the cover, high-alloy steel for the piston rod, and smooth-anodized wrought aluminum alloy for the cylinder barrel, ensuring durability and resistance to corrosion.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10mm | Piston diameter | 32 mm |
Based on norm | ISO 21287 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Protection against torsion/guide | Guide rod with yoke |
Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.4J |
Theoretical force at 6 bar, retracting | 415N | Theoretical force at 6 bar, advancing | 483N |
Moving mass | 142g | Product weight | 347g |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Flange screws material | Steel | Cover material | Wrought aluminum alloy, anodized |
Seals material | TPE-U(PUR) | End plate material | Wrought aluminum alloy, anodized |
Piston rod material | High-alloy steel | Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
Manufacturer ID | 554239 |
Specifications may be subject to change without notice
