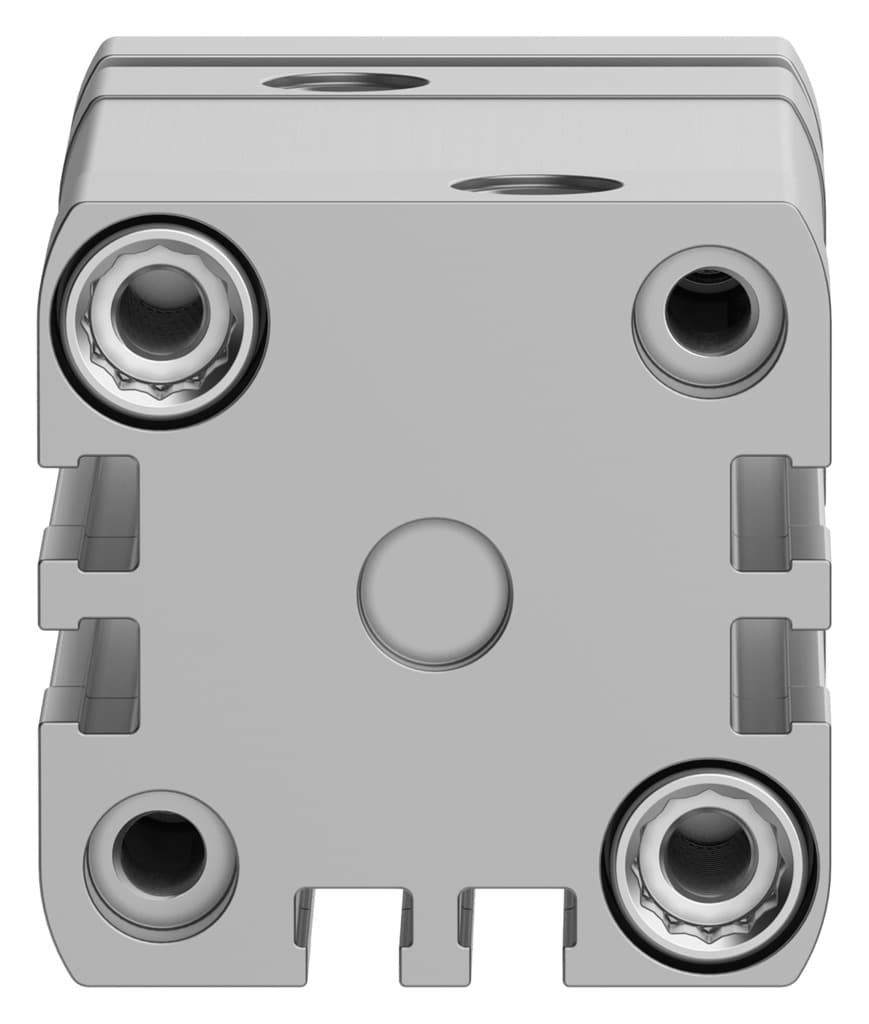

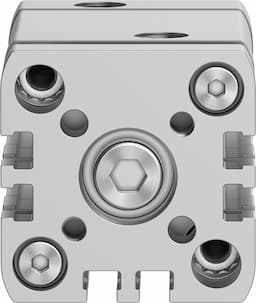

Product Model
adngf-32-25-pps-a
Selling Points
- 1Compact design with 32mm piston diameter and 25mm stroke.
- 2Self-adjusting pneumatic end-position cushioning for precise control.
- 3Standard hole pattern for easy mounting and integration.
- 4Double-acting operation with compressed air to ISO 8573-1:2010 [7:4:4].
- 5High-alloy steel piston rod and smooth-anodized aluminum alloy cylinder barrel for durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 25mm | Piston diameter | 32 mm |
Based on norm | ISO 21287 | Cushioning | Self-adjusting pneumatic end-position cushioning |
Mounting position | Any | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Protection against torsion/guide | Guide rod with yoke |
Operating pressure | 1.9bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 1J |
Cushioning length | 4mm | Theoretical force at 6 bar, retracting | 415N |
Theoretical force at 6 bar, advancing | 483N | Moving mass | 174g |
Product weight | 410g | Pneumatic connection | G1/8 |
Note on materials | RoHS-compliant | Flange screws material | Steel |
Cover material | Wrought aluminum alloy, anodized | Seals material | TPE-U(PUR) |
End plate material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy steel |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Manufacturer ID | 574025 |
Specifications may be subject to change without notice
