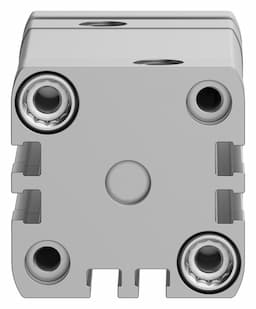

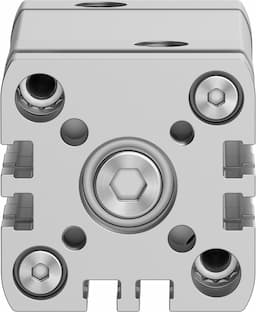

Festo ADNGF-32-40-PPS-A Pneumatic Compact Cylinder

Selling Points

1Compact Design: Ideal for smaller-scale equipment with a 32mm bore and 40mm stroke.
2Self-Adjusting Cushioning: PPS material ensures smooth movement and reduces impact damage.
3Corrosion Resistance: Wrought aluminum alloy cylinder barrel and high-alloy steel piston rod for long-lasting performance.
4Wide Operating Temperature Range: Reliable operation from -20°C to +80°C in harsh industrial environments.
5Double-Acting Operation: Supports extension and retraction of the piston with two ports, suitable for various automation tasks.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	40mm	Piston diameter	32 mm
Based on norm	ISO 21287	Cushioning	Self-adjusting pneumatic end-position cushioning
Mounting position	Any	Structural design	Piston Piston rod Profile barrel
Position sensing	For proximity sensor	Protection against torsion/guide	Guide rod with yoke
Operating pressure	1.9bar 10bar	Mode of operation	Double-acting
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Impact energy in the end positions	1J
Cushioning length	4mm	Theoretical force at 6 bar, retracting	415N
Theoretical force at 6 bar, advancing	483N	Moving mass	199g
Product weight	466g	Pneumatic connection	G1/8
Note on materials	RoHS-compliant	Flange screws material	Steel
Cover material	Wrought aluminum alloy, anodized	Seals material	TPE-U(PUR)
End plate material	Wrought aluminum alloy, anodized	Piston rod material	High-alloy steel
Material of cylinder barrel	Wrought aluminum alloy, smooth-anodized	Manufacturer ID	574027

Specifications may be subject to change without notice
