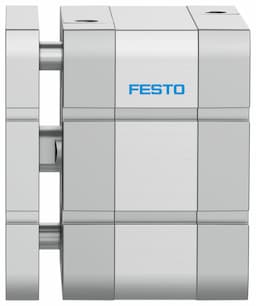

Product Model
adngf-4"- -
Selling Points
- 1Compact and lightweight design for easy integration into systems.
- 2Flexible cushioning rings/plates at both ends for smooth operation.
- 3Sensor-ready for precise position detection via proximity switch.
- 4Double-acting mode for efficient operation in both directions.
- 5Corrosion resistance class CRC 2, suitable for moderate industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 5.0038mm 399.9992mm | Piston diameter | 4" |
Based on norm | ISO 21287 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Variants | Through piston rod |
Protection against torsion/guide | Guide rod with yoke | Operating pressure | 1bar 10bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 2.50013J | Theoretical force at 6 bar, retracting | 4523.998N |
Theoretical force at 6 bar, advancing | 4523.998N 4712.002N | Moving mass at 0?mm stroke | 1092.921g |
Additional moving mass per 10?mm stroke | 116.405g | Basic weight with 0?mm stroke | 2682.59g |
Additional weight per 10?mm stroke | 43.149g | Type of mounting | Optionally: With through-hole With internal thread With accessories |
Pneumatic connection | 1/8 NPT | Flange screws material | Steel |
Cover material | Die-cast aluminum, coated | Seals material | NBR |
Material of dynamic seals | TPE-U(PU) | End plate material | Wrought aluminum alloy, anodized |
Piston rod material | High-alloy steel | Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
Manufacturer ID | 557279 |
Specifications may be subject to change without notice
